Salt Spray Test Chamber-CZ-90C (PP Material)
designed to evaluate the corrosion resistance of metals, metal coatings, organic coatings, anodized films, and surface-treated materials. It provides a cost-effective solution for manufacturers and laboratories to assess coating protection, material durability, and surface corrosion resistance under controlled salt spray conditions.
The chamber supports Neutral Salt Spray (NSS), Acetic Acid Salt Spray (AASS), and Copper Accelerated Acetic Acid Salt Spray (CASS) testing. With programmable control, it can perform continuous spray, intermittent spray, and programmed spray cycles to meet different testing requirements.
The equipment is designed for commonly used salt spray corrosion test methods and relevant standards, including ASTM B117, IEC 60068-2-11, JIS H8502, GB/T 10125, ISO 9227, GB/T 2423.17, and applicable ISO 11474 requirements. The applicable standards depend on the selected test method and equipment configuration.
Application Industries
- Automotive Industry
- Surface Treatment Industry
- Coating and Electroplating Industry
- Hardware Manufacturing
- Aerospace Components
- Metal Products Manufacturing
Function:
The C-type salt spray chamber can perform continuous salt spray test or intermittent spray test, can be connected to a computer for remote
operation and control, can record test data and curves, and has a touch screen operation interface.
Major Specifications:
| Model | CZ-60C | CZ-90C | CZ-120C | CZ-160C | CZ-200C |
| Inner size (WxHxD)(cm) | 60x40x45 | 90x50x60 | 120x50x80 | 160x50x100 | 200x60x120 |
| Outer size (WxHxD)(cm) | 110x109x68 | 145x120x88 | 208x133x125 | 247x132x145 | 287x141x165 |
| Test lab temperature |
Salt spray test method (NSS ACSS) 35°C ± 1°C; Corrosion resistance test method (CASS) 50℃ ± 1℃ |
||||
| Pressure barrel temperature |
Salt spray test method (NSS ACSS) 47°C ± 1°C; Corrosion resistance test method (CASS) 63℃ ± 1℃ |
||||
| Test lab capacity | 108L | 270L | 480L | 800L | 1440L |
| Salt tank capacity | 15L | 25L | 40L | 40L | 40L |
| Salt concentration | Add 0.26g of copper chloride (CuCL2 2H2O) per liter to 5% sodium chloride solution or 5% sodium chloride solution | ||||
| Salt spray pressure | 70-170Kpa | ||||
| Spray volume | 1~2ml/ (h•80cm2) (collect for at least 16 hours and take the average value) | ||||
| Test lab relative humidity | ＞85% | ||||
| PH value | 6.5~7.2 3.0~3.2 | ||||
| Spray method | Continuous spray, periodic spray, program spray three modes to choose | ||||
| Power | AC220V 1 ∅10A | AC220V 1 ∅20A | AC220V 1 ∅25A | ||
Product Details
Test Standards:
1)ASTMGB117GB/T2423.17/IEC60068-2-11
2)JIS H8502 GB/T10125-2021/ISO9227:2017
3)GJB150.11A-2009
4)GBT20121-2006/ISO114741998 and other test methods

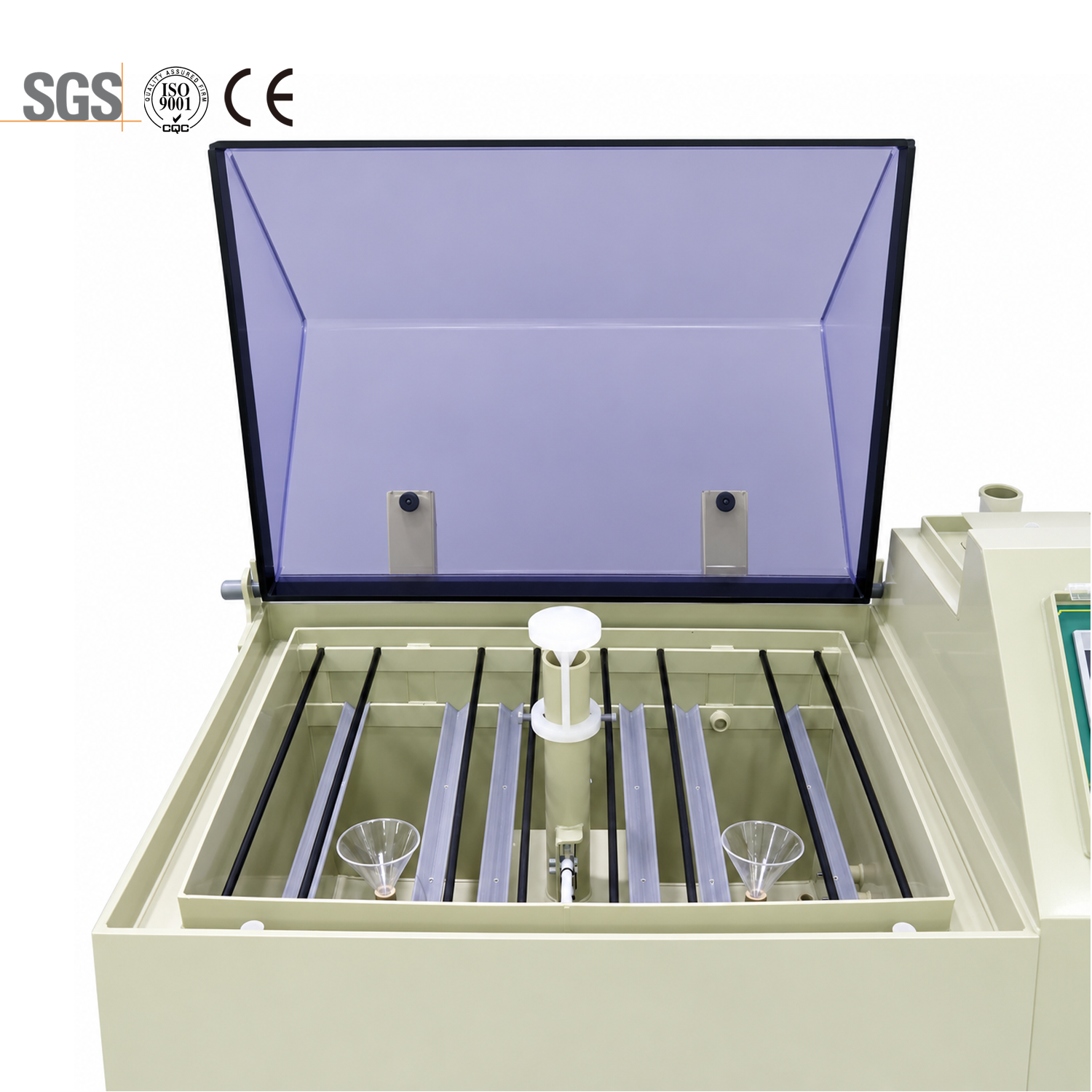

Inner Box | Details
Controller | Details
