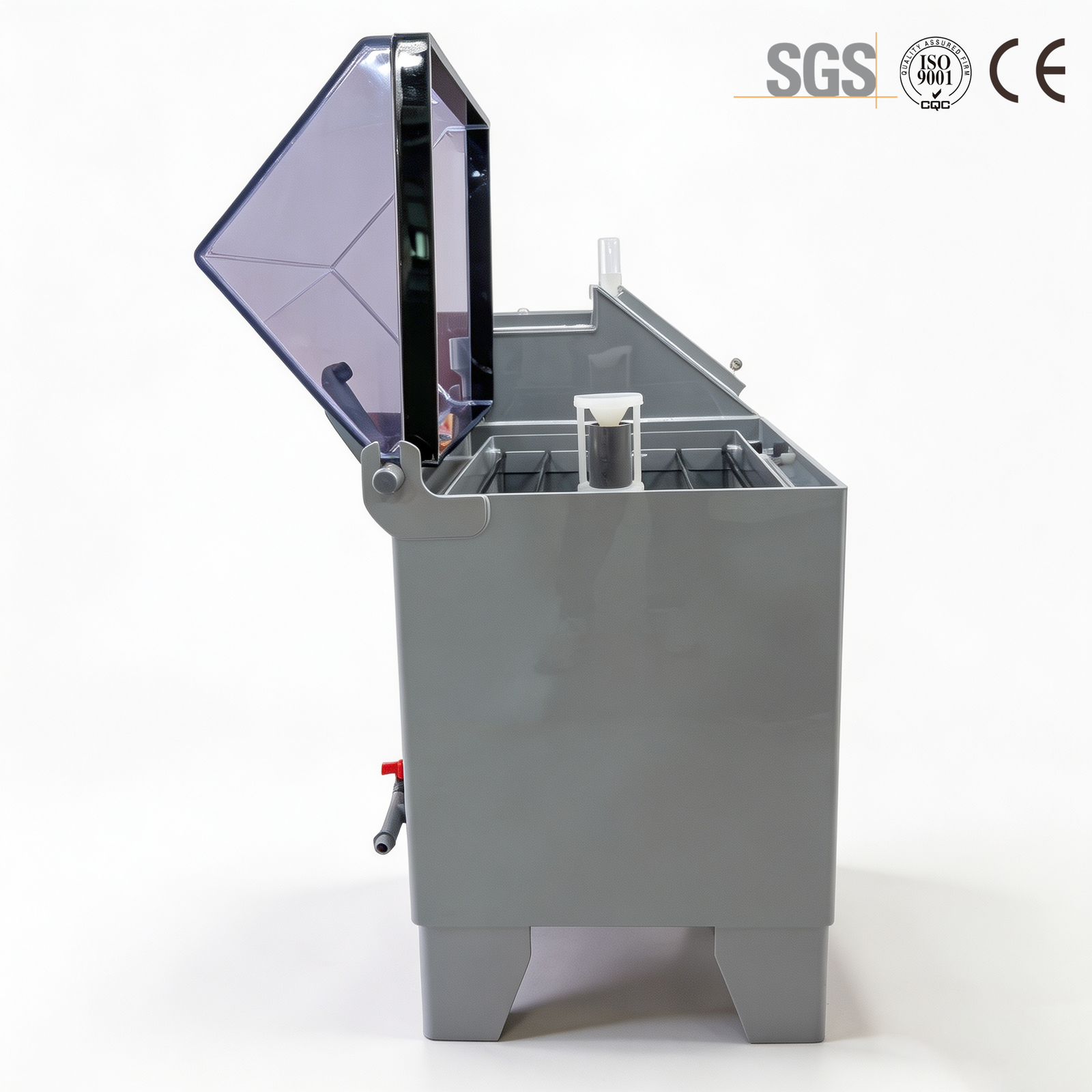

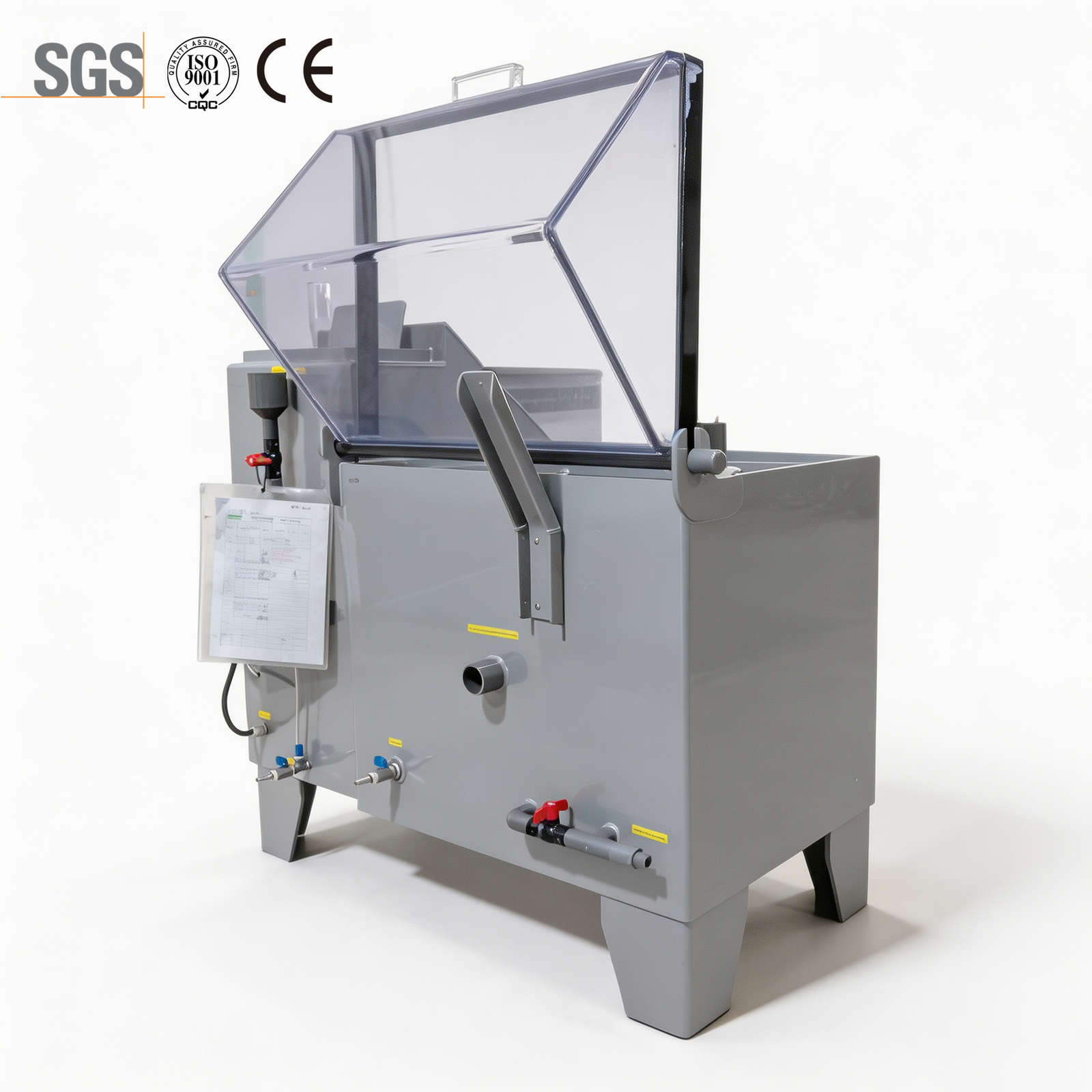

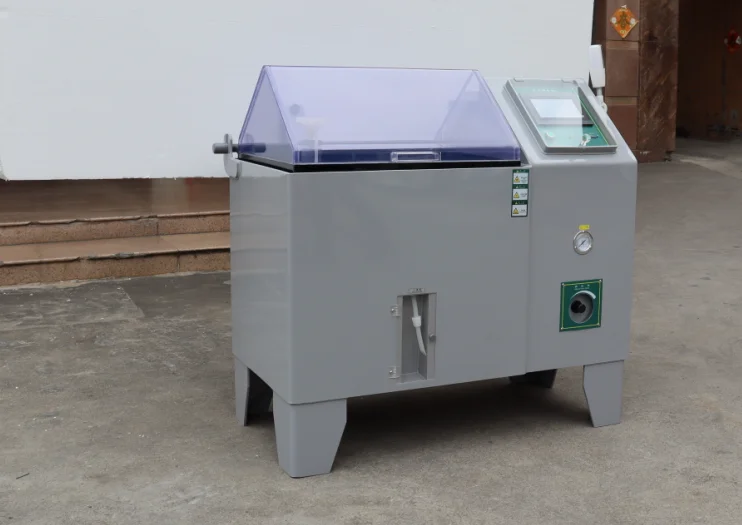

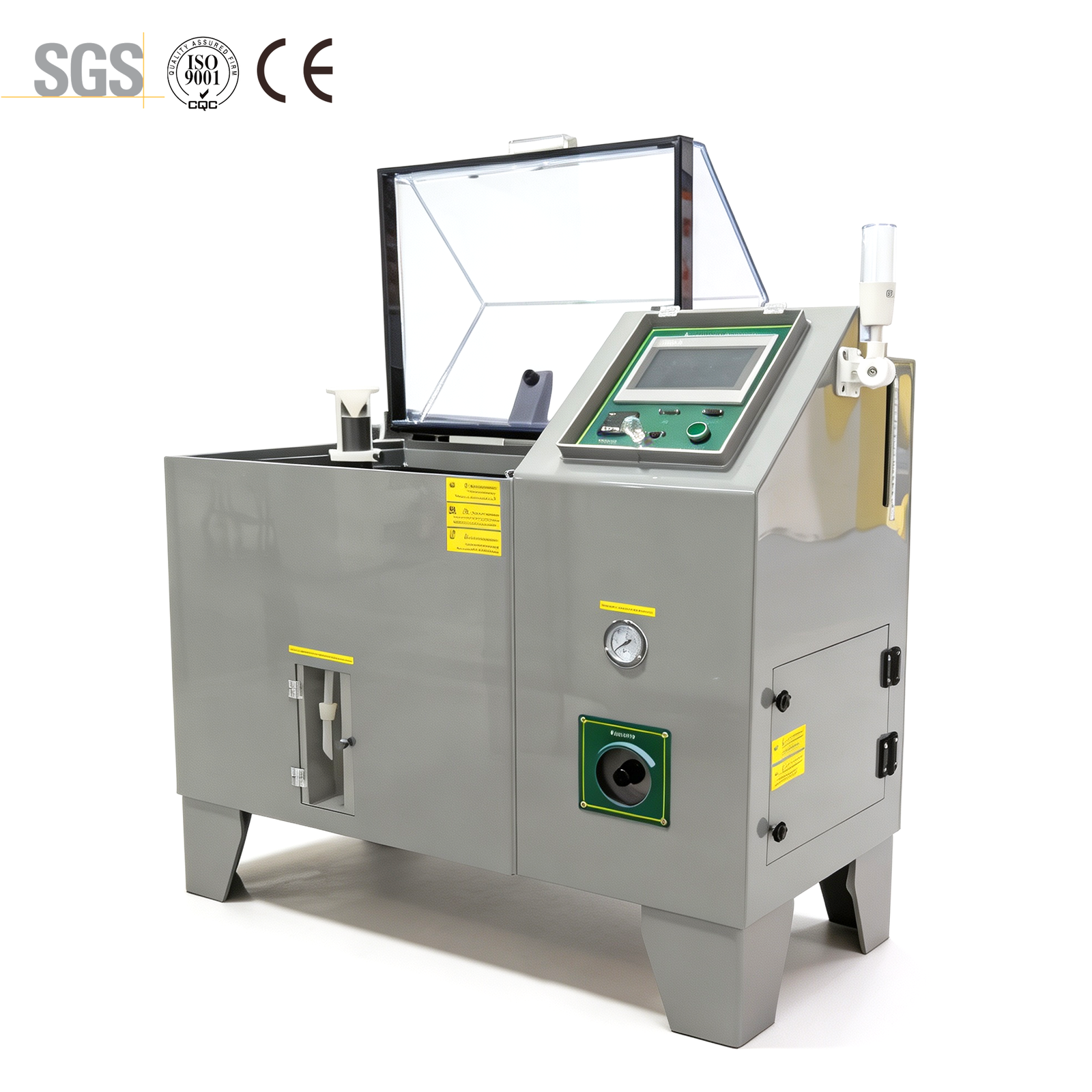

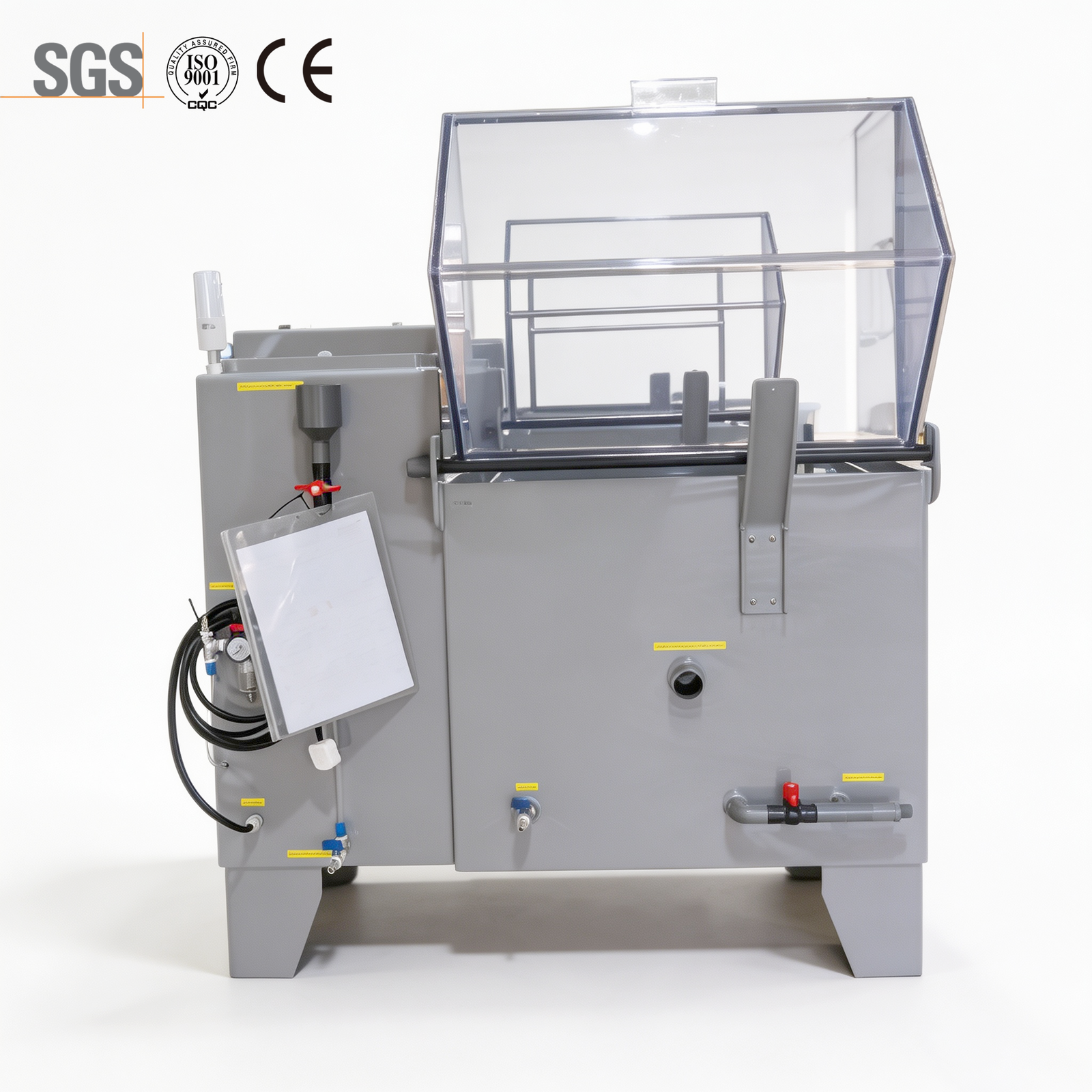

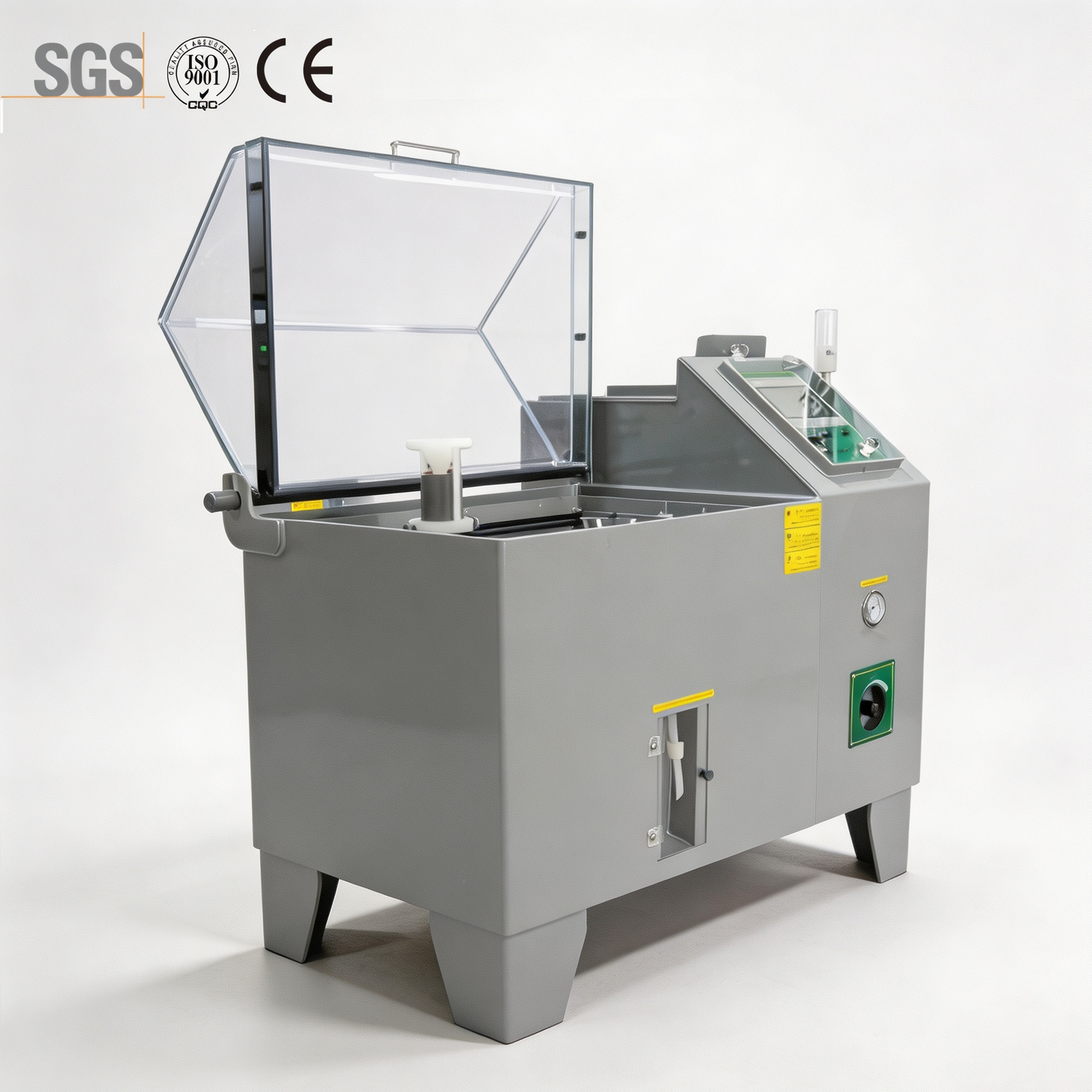

Economy Salt Spray Chamber CZ-60C
108L Salt Spray Test Chamber | Laboratory Corrosion Testing Equipment for Accelerated Corrosion Evaluation
The 108L Salt Spray Test Chamber is an advanced laboratory corrosion testing equipment designed for evaluating the corrosion resistance performance of metals, coatings, surface treatments, electronic components, automotive parts, and industrial materials. By simulating harsh salt spray and saline environmental conditions, this corrosion test chamber provides accelerated corrosion testing results to help manufacturers improve product quality, durability, and reliability.
This laboratory salt spray tester supports multiple corrosion test methods, including NSS (Neutral Salt Spray), ASS (Acetic Acid Salt Spray), and CASS (Copper Accelerated Acetic Acid Salt Spray) tests. It is widely used in industries such as automotive manufacturing, metal processing, coating production, hardware products, aerospace components, electronics, and quality inspection laboratories.
The equipment is designed according to international corrosion testing standards, including ASTM B117, ISO 9227, IEC 60068, and GB/T 2423, ensuring reliable and standardized testing results for global customers.
Applications
- Automotive Industry
- Electronics Industry
- Aerospace Industry
- Hardware and Metal Products
- Surface Treatment Industry
- Marine and Outdoor Equipment
¥999.00
Function:
The C-type salt spray chamber can perform continuous salt spray test or intermittent spray test, can be connected to a computer for remote
operation and control, can record test data and curves, and has a touch screen operation interface.
Major Specifications:
| Model | CZ-60C | CZ-90C | CZ-120C | CZ-160C | CZ-200C |
| Inner size (WxHxD)(cm) | 60x40x45 | 90x50x60 | 120x50x80 | 160x50x100 | 200x60x120 |
| Outer size (WxHxD)(cm) | 110x109x68 | 145x120x88 | 208x133x125 | 247x132x145 | 287x141x165 |
| Test lab temperature |
Salt spray test method (NSS ACSS) 35°C ± 1°C; Corrosion resistance test method (CASS) 50℃ ± 1℃ |
||||
| Pressure barrel temperature |
Salt spray test method (NSS ACSS) 47°C ± 1°C; Corrosion resistance test method (CASS) 63℃ ± 1℃ |
||||
| Test lab capacity | 108L | 270L | 480L | 800L | 1440L |
| Salt tank capacity | 15L | 25L | 40L | 40L | 40L |
| Salt concentration | Add 0.26g of copper chloride (CuCL2 2H2O) per liter to 5% sodium chloride solution or 5% sodium chloride solution | ||||
| Salt spray pressure | 70-170Kpa | ||||
| Spray volume | 1~2ml/ (h•80cm2) (collect for at least 16 hours and take the average value) | ||||
| Test lab relative humidity | ＞85% | ||||
| PH value | 6.5~7.2 3.0~3.2 | ||||
| Spray method | Continuous spray, periodic spray, program spray three modes to choose | ||||
| Power | AC220V 1 ∅10A | AC220V 1 ∅20A | AC220V 1 ∅25A | ||
Product Details
Test Standards:
1)ASTMGB117GB/T2423.17/IEC60068-2-11
2)JIS H8502 GB/T10125-2021/ISO9227:2017
3)GJB150.11A-2009
4)GBT20121-2006/ISO114741998 and other test methods

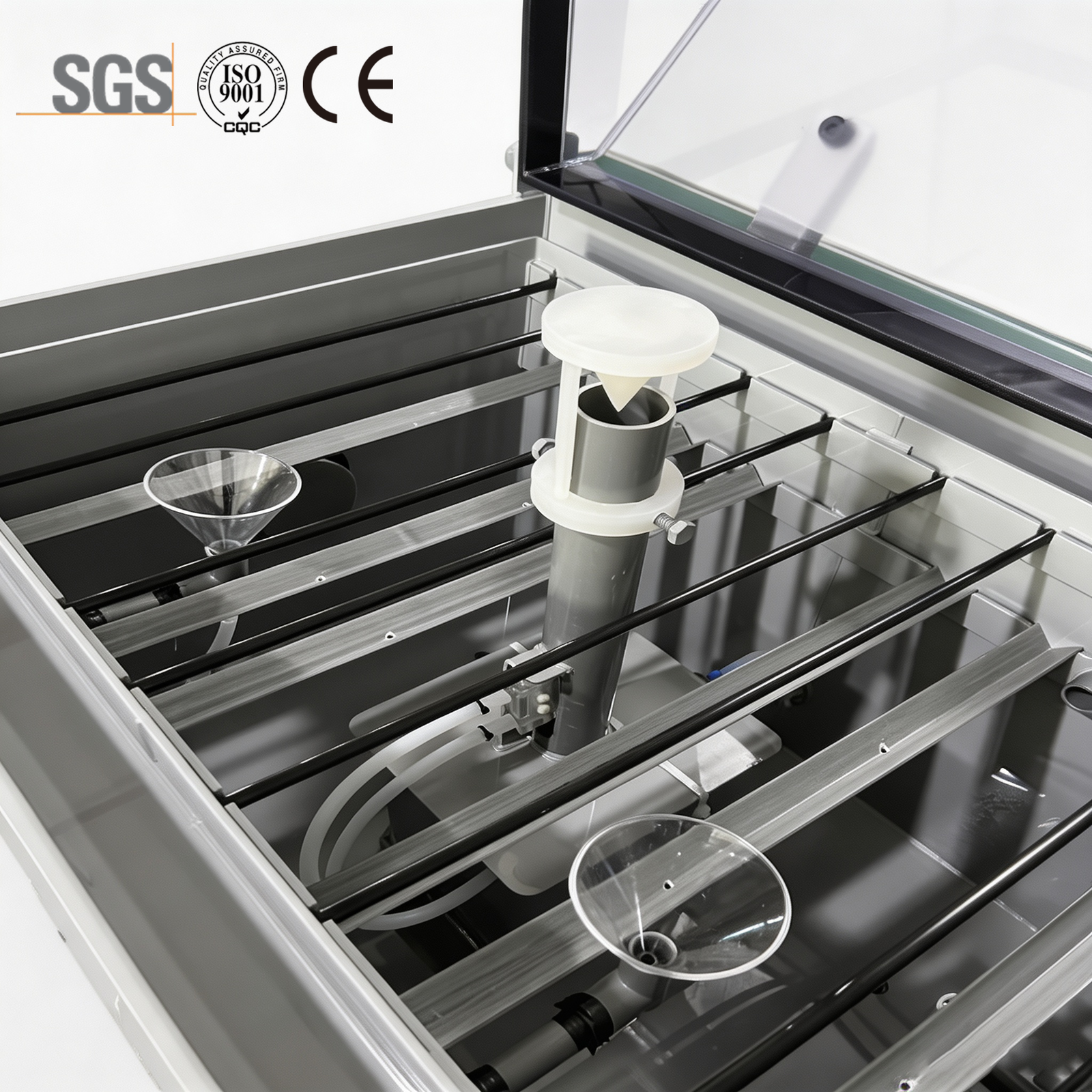

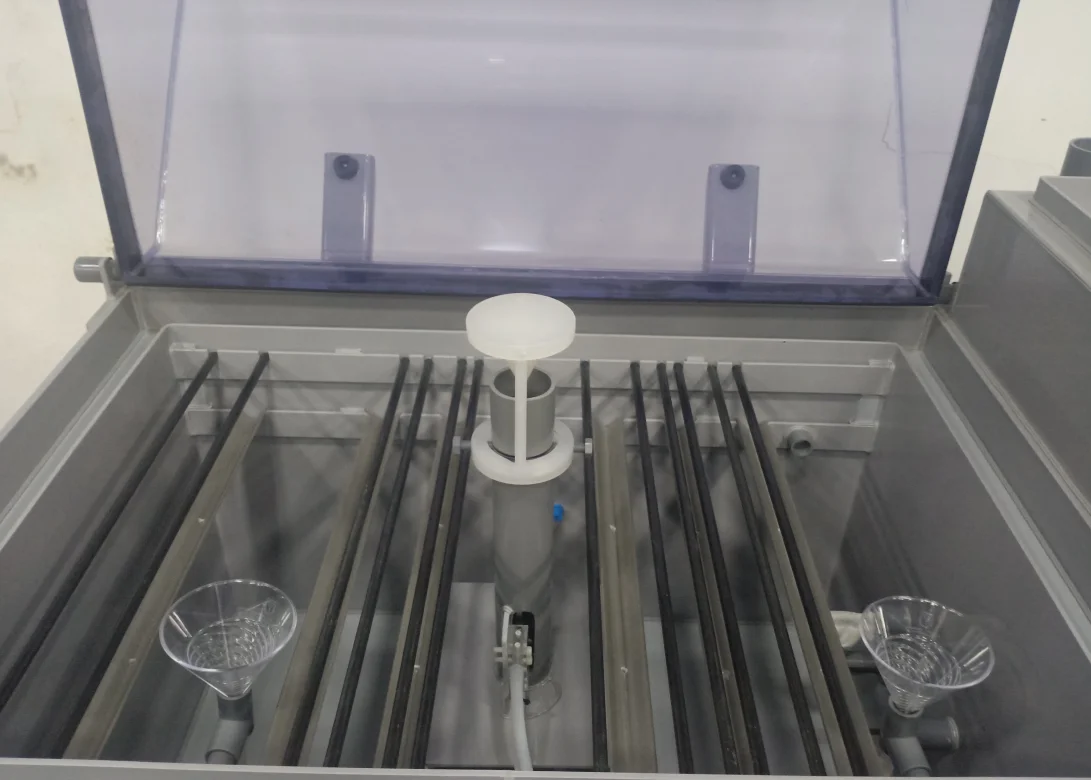

Inner Box | Details

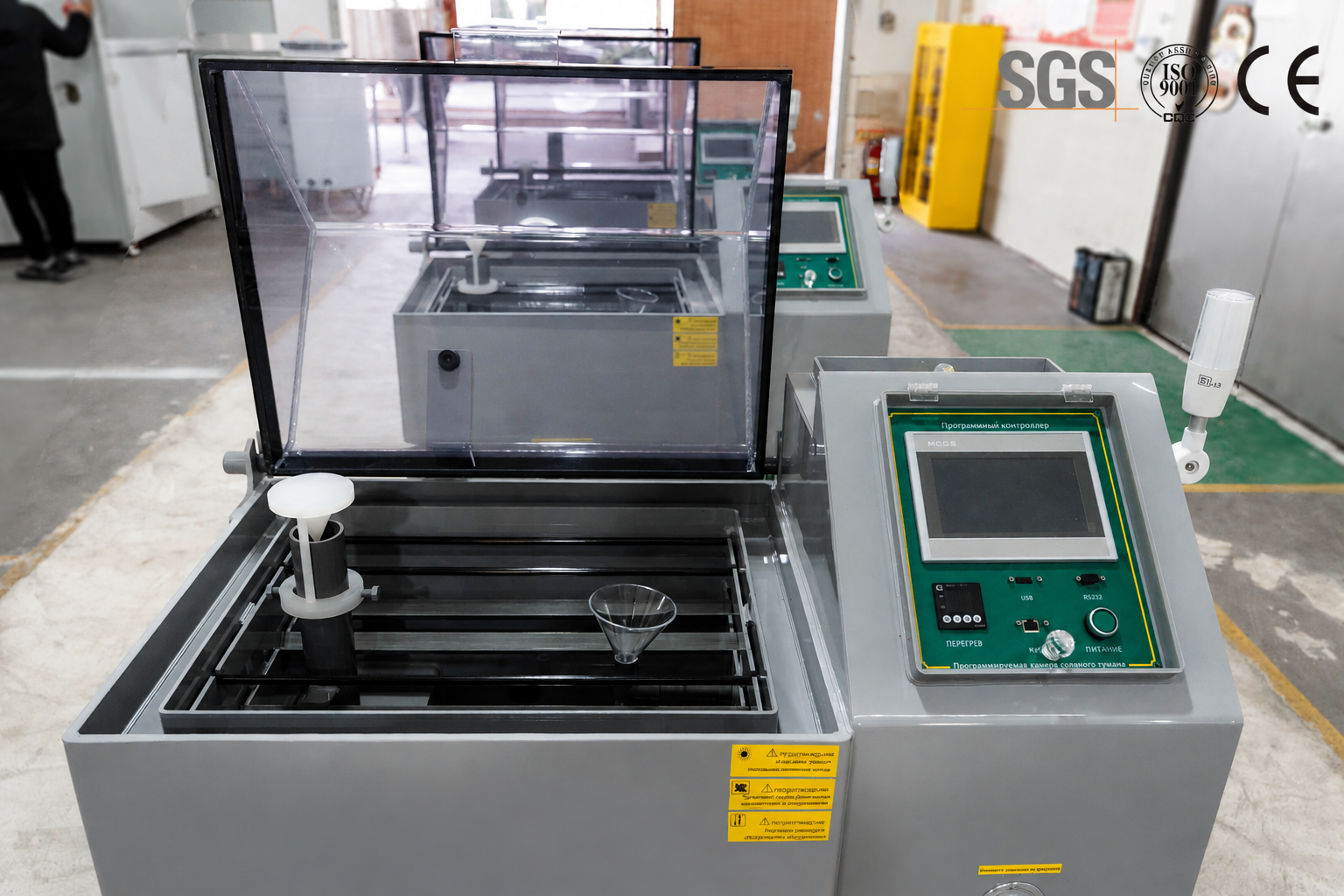

Controller | Details
