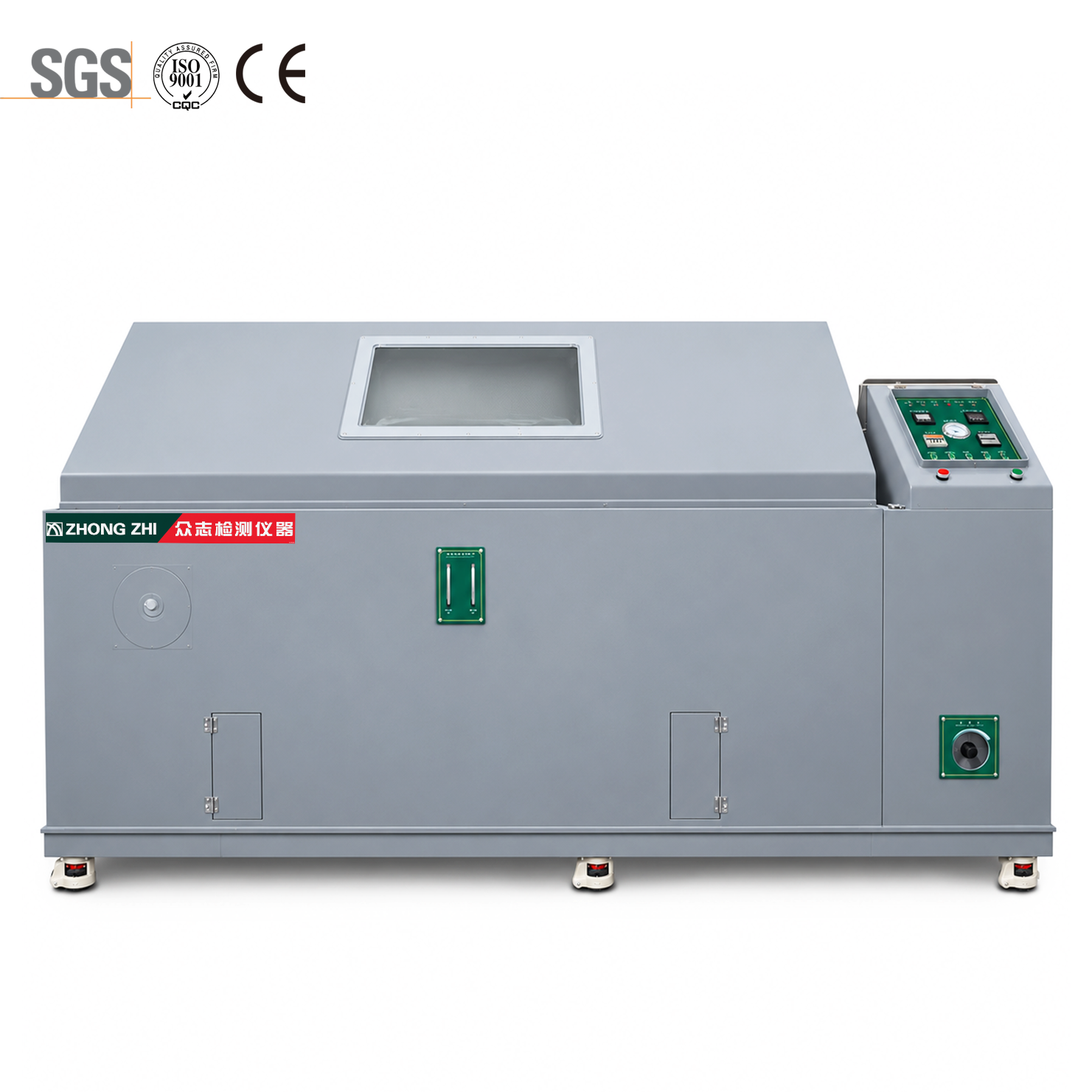

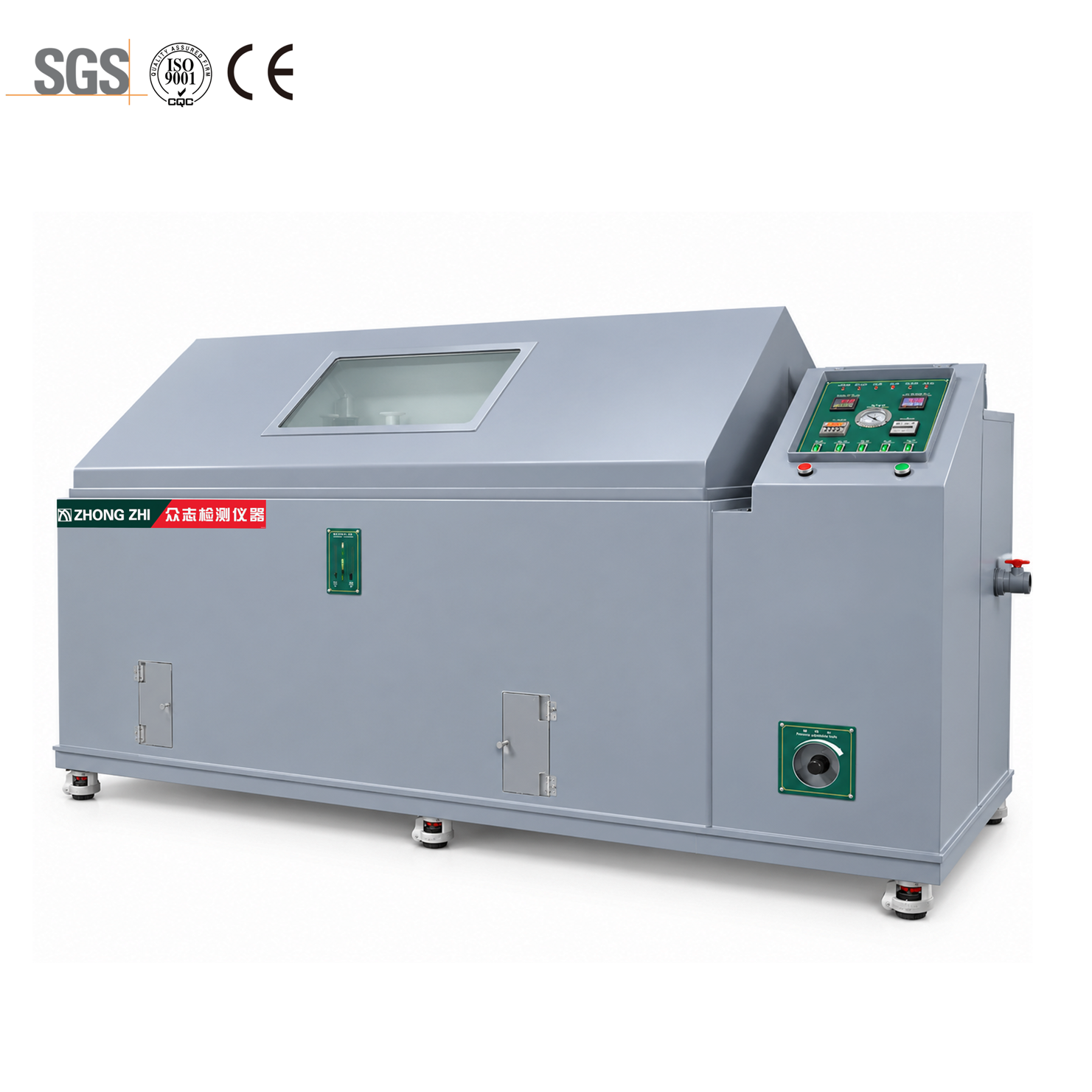

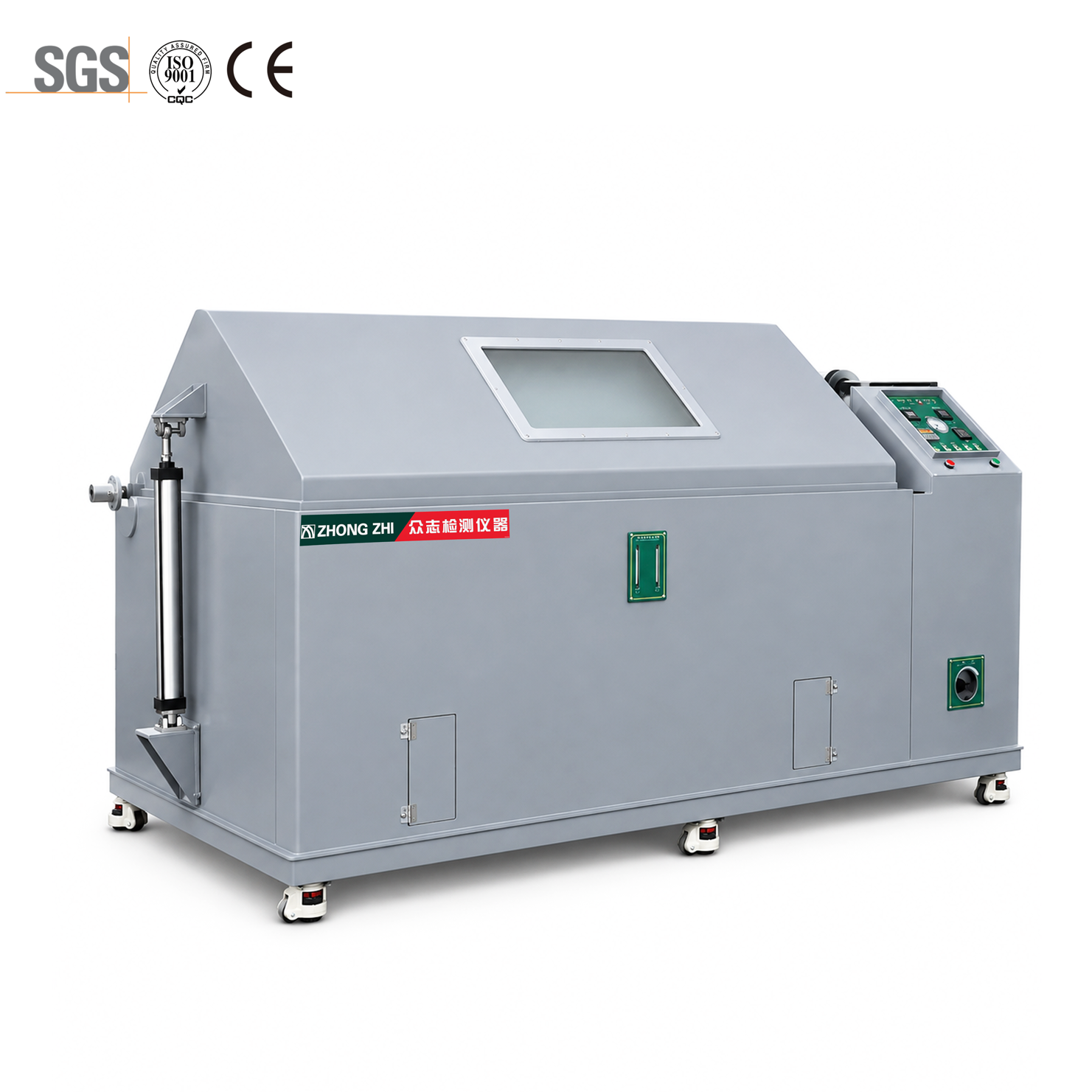

CZ-200A 1440L Salt Spray Tester Environmental Test Chamber
Function:
Type A series can be used to complete many accelerated corrosion tests, including GJB150.11A-2009, ASTM B117, GB/T2423.17/IEC 60068-2-11,
JIS H8502, GB/T10125-2021/ISO9227:2017 and other test methods. It is our most economical model, which can be used for continuous spray tests.
Test Standards:
1)GB/T2423.17-2008/IEC 60068-2-11-1981 Salt spray test method
2)ASTM.B117-2009 Salt spray test
3)JIS H8502 Salt spray test method
4)GB/T10125-2012/ISO 9227-2006 Salt spray test method
5)GB-T5170.8-2008 Inspection method of environmental testing equipment for electrical&electronics products-salt test equipment
6)GB-T5170.11-2008 Test method for corrosive gas test equipment
7)GB-T10587-2006 Technical condition of salt spray test chamber
Major Specifications:
| Model | CZ-60A | CZ-90A | CZ-120A | CZ-160A | CZ-200A |
| Inner size (WxHxD)(cm) | 60x40x45 | 90x50x60 | 120x50x80 | 160x50x100 | 200x60x120 |
| Outer size (WxHxD)(cm) | 116x110x60 | 151x124x80 | 212x130x125 | 247x134x145 | 290x155x165 |
| Test lab temperature |
Salt spray test method (NSS ACSS) 35°C ± 1°C; Corrosion resistance test method (CASS) 50℃ ± 1℃ |
||||
| Pressure barrel temperature |
Salt spray test method (NSS ACSS) 47°C ± 1°C; Corrosion resistance test method (CASS) 63℃ ± 1℃ |
||||
| Test lab capacity | 108L | 270L | 480L | 800L | 1440L |
| Salt tank capacity | 15L | 25L | 40L | 40L | 40L |
| Salt concentration | Add 0.26g of copper chloride (CuCL2 2H2O) per liter to 5% sodium chloride solution or 5% sodium chloride solution | ||||
| Salt spray pressure | 70-170Kpa | ||||
| Spray volume | 1~2ml/ (h•80cm2) (collect for at least 16 hours and take the average value) | ||||
| Test lab relative humidity | ＞85% | ||||
| PH value | 6.5~7.2 3.0~3.2 | ||||
| Spray method | Continuous spray | ||||
| Power | AC220V 1 ∅10A | AC220V 1 ∅20A | AC220V 1 ∅25A | ||
Product Details

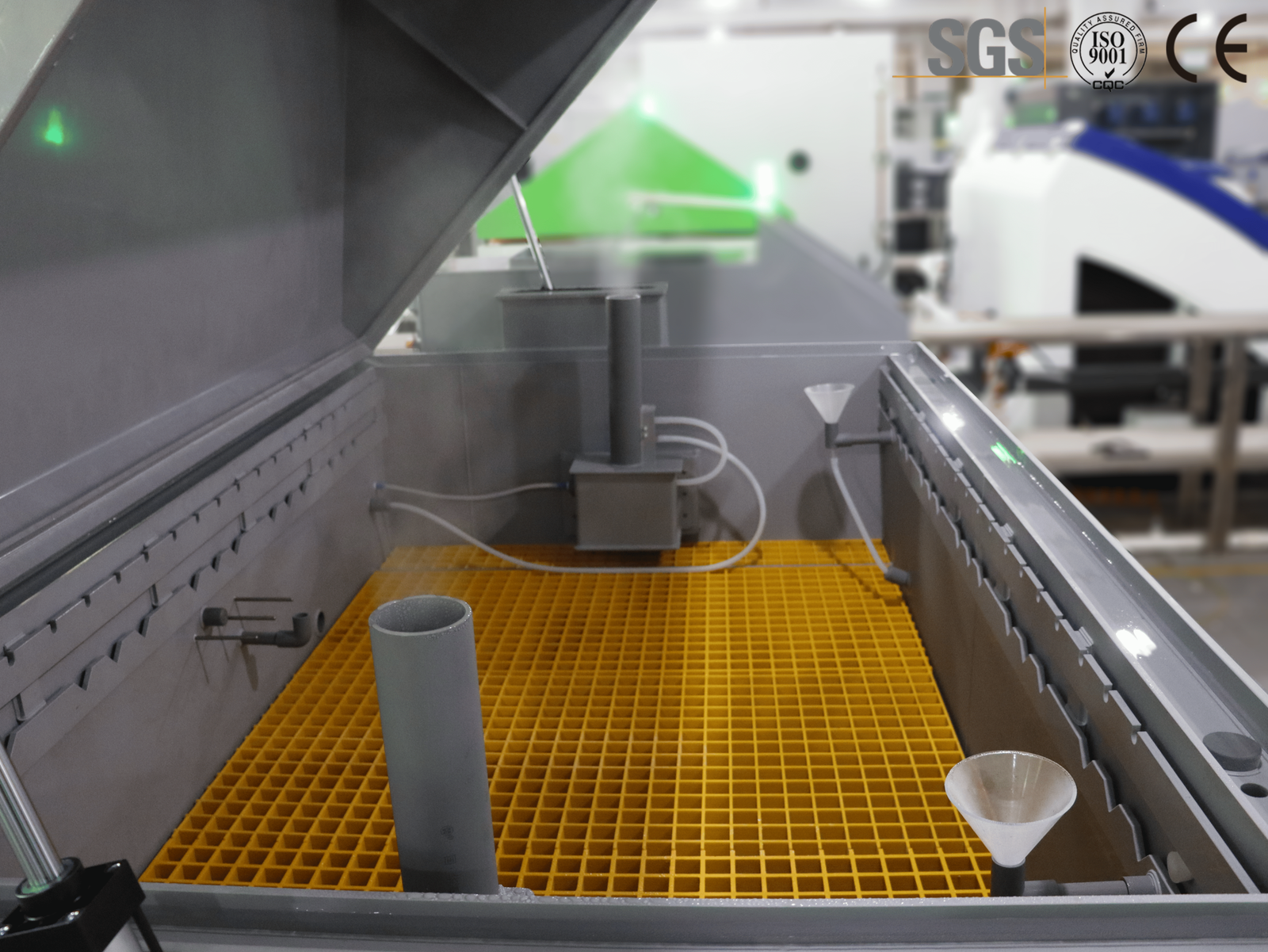

Inner Box | Details
SSSSSSSSSSSSSSSSSSS
Controller | Details
