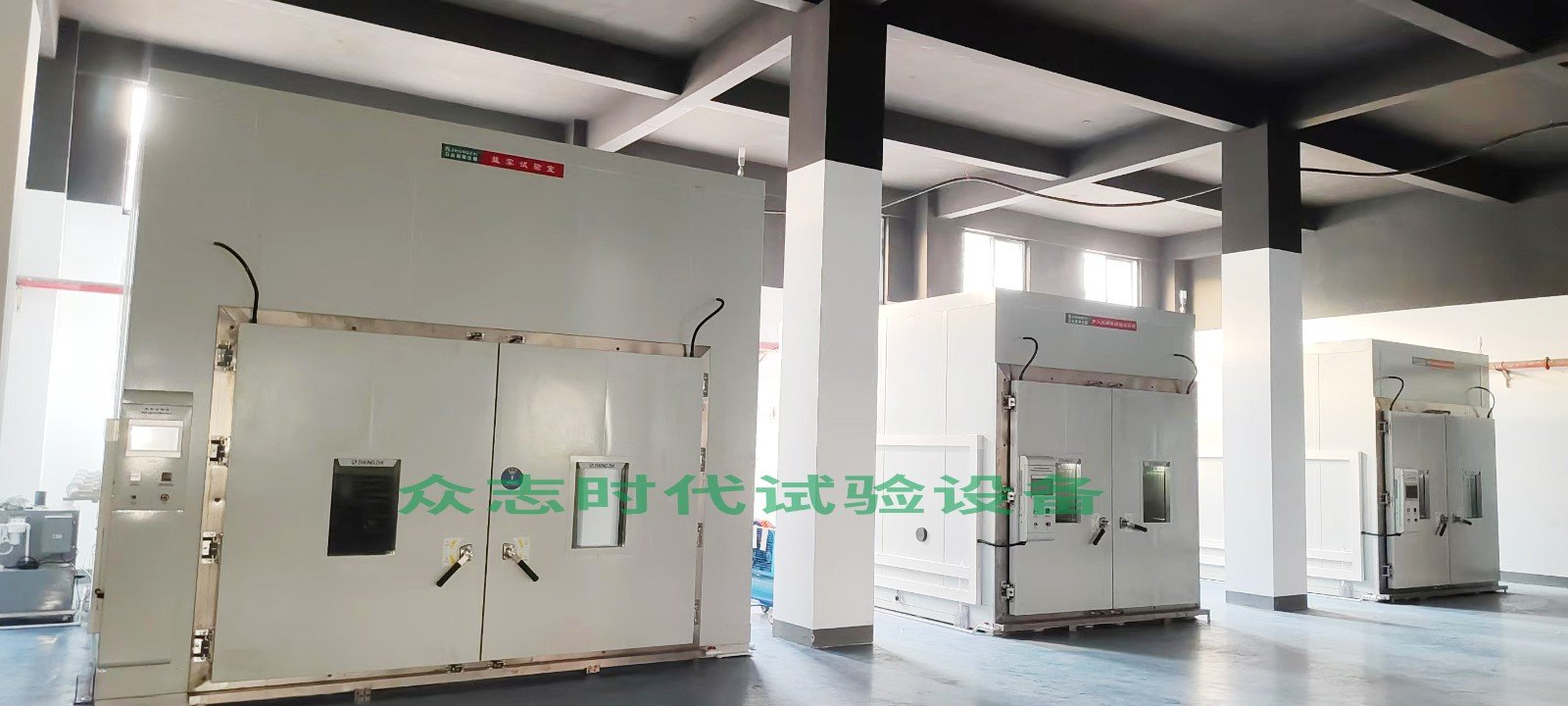

Walk-in Salt Spray Test Chamber 40m³
Overview:
This test equipment simulates corrosion testing in an artificial environment and is used to test the quality of metal materials with or without anti-corrosion protection. It is suitable for rapid analysis of discontinuities, holes, and damage in organic and inorganic coatings. In addition, for quality control purposes, it can compare samples coated with the same coating. Salt spray testing is particularly suitable for detecting discontinuities, such as pinholes and other defects in certain metal, organic, anodic oxidation and conversion coatings.
Product Details：
Major Specifications:
| Product Name | Salt spray test chamber |
| Product Model | CZ -40KC |
| Sample limit | This test equipment is prohibited from:
Testing or storing samples containing flammable, explosive, or volatile substances Testing or storing samples containing corrosive substances Testing or storing samples containing biological substances Testing or storing samples containing strong electromagnetic radiation sources Testing or storing samples containing radioactive substances Testing or storing samples containing highly toxic substances Testing or storing samples containing samples that may generate highly toxic substances during testing or storage |
| Nominal content | 40m³ volume without top sloping roof |
| Inner box size (mm) | Width 4000 x Height 2000 x Depth 5000
Note: This does not include the top bevel height; the top bevel angle is 110-115° and the bevel height is 1342mm. |
| Outer box size (mm) | Width 4200 x Height 3550 x Depth 5750
Note: External box dimensions do not include the brine tank dimensions, and the exhaust pipe extends 150mm beyond the equipment dimensions. |
| Brine tank size (mm) | Approximately Φ900×H 950, capacity 500L |
| Equipment bottom load | ≥1000kg/m2 evenly distributed |
| Net weight of equipment | About 7 tons |
| power supply | AC (380 ± 10) V (50 ± 0.5) Hz three-phase four-wire + protective grounding |
