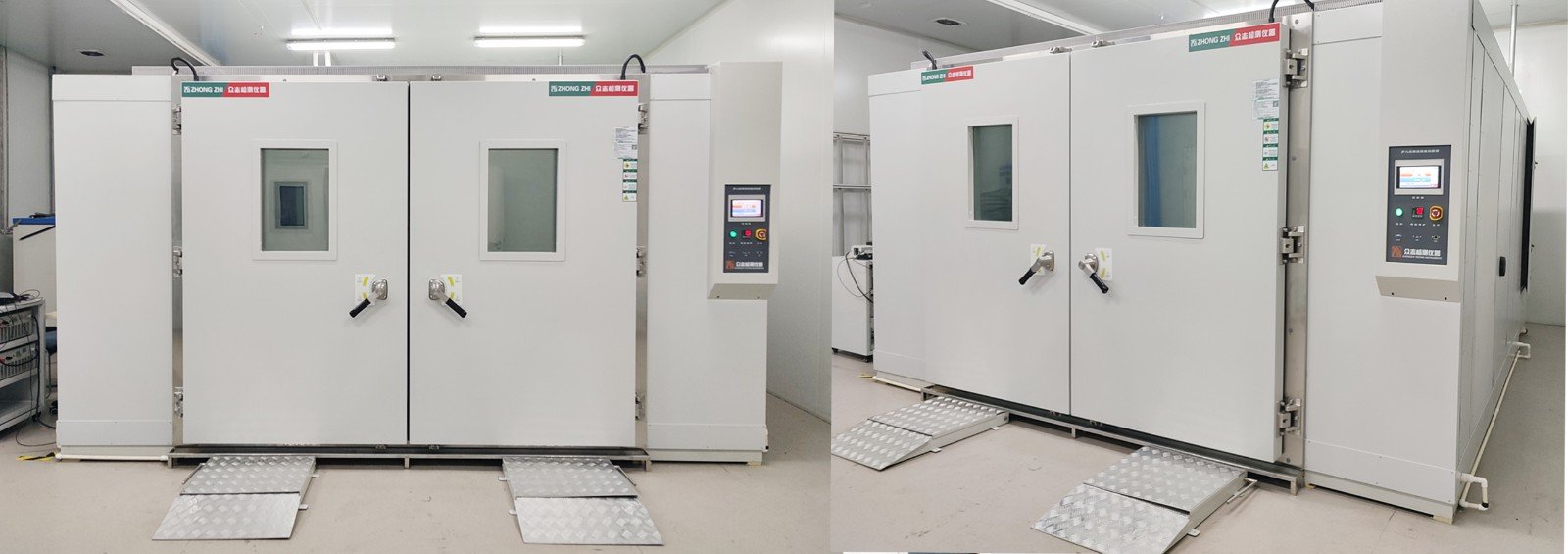

Walk in High Temperature Aging Chamber

Product Introduction:

High temperature aging room, also known as high temperature aging machine, high temperature aging cabinet, aging room, burn-in room, burning room, etc., is a device for simulating high temperature and harsh environment testing for high-performance electronic products (such as: computer, PCB board, display, terminal, automotive electronic products, power supply, motherboard, monitor, switching charger, etc.). It is an important experimental equipment to improve product stability and reliability, and it is also an important production process for various manufacturers to improve product quality and competitiveness. The equipment is widely used in power electronics, computers, communications, biopharmaceuticals and other fields.

According to different requirements, the main system, main power system, control system, heating system, temperature control system, wind constant temperature system, time control system, test load, etc. are configured. Through this test procedure, defective products or defective parts can be detected. It is an effective means for customers to quickly find and solve problems, fully improve customer production efficiency and product quality, and is also a device for load or temperature aging testing of switching power supplies, mobile phone chargers, batteries, LCDs, motherboards, scanners, monitors, LEDs, biological equipment and other interface cards.

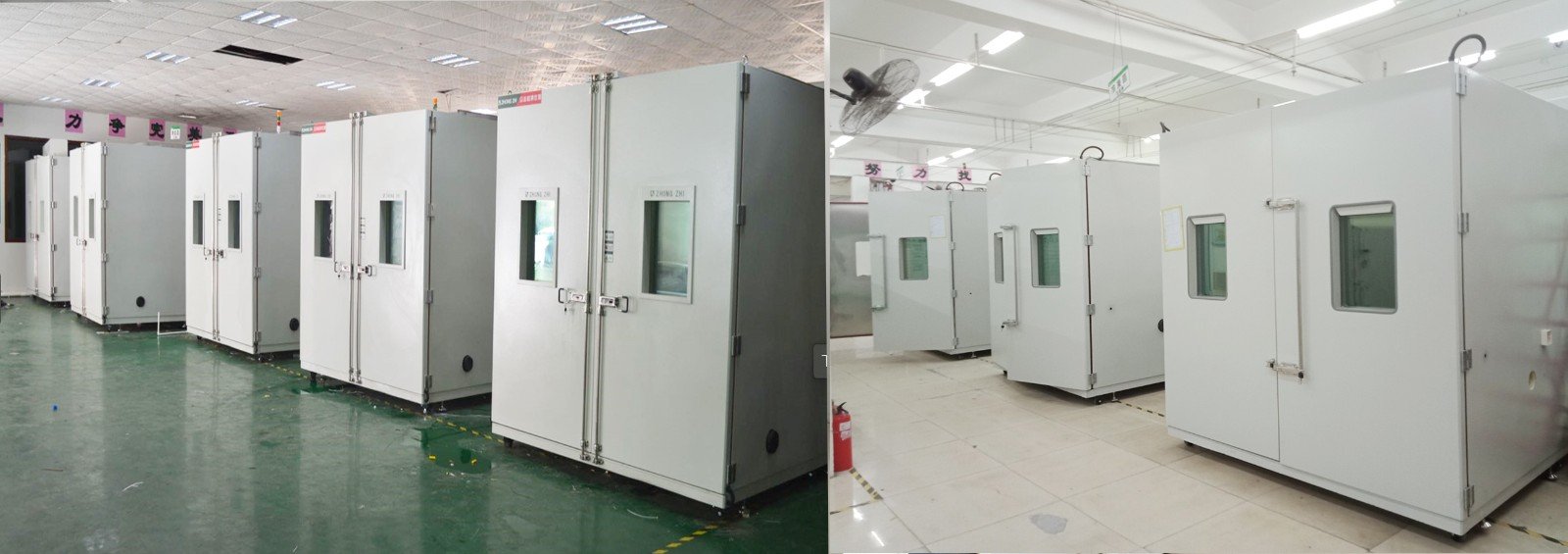

The outer frame of the aging room is composed of insulation panels and compartments, equipped with main distribution boxes, test racks, temperature controllers, timers, various electrical switches, heating electric heaters, tray racks, sliding doors, circulating fans, exhaust fans, sockets and other equipment to simulate a high temperature and harsh environment (40℃-70℃±5℃, power ON-OFF action, etc.), so that the product can be powered on by connecting the simulated load in this environment. The test time can be set arbitrarily within 0-99.9 hours. Through this test procedure, defective products or defective parts can be found. It is a process and quality control equipment.

Since the performance and environment of the aging room must ensure the temperature, power quality, load, working time and operator safety and habits required by the product, a qualified aging equipment should be a safe, reliable, energy-efficient, fully functional and expandable equipment.

High temperature aging room is suitable for LED, LCD, PCB, electronics, electrical appliances, communications, and new energy products to test product stability and reliability in simulated high temperature, low temperature, and hot and humid harsh environments.

Major Specifications:

LCD display controller imported from South Korea, can display the set temperature and current temperature, P.I.D automatic calculation control, including four sets of temperature alarm point output, four sections of nonlinear temperature deviation calibration can be set internally, DC 0~24V output control
Outer wall material: cold-rolled steel plate with paint treatment, plate thickness 1.2mm (paint color: RAL7035) Inner wall material: stainless steel, argon arc welding full welding to prevent the machine itself from generating dust, plate thickness 1.2mm Insulation material: The insulation medium is high-density aluminum silicate, insulation material thickness: 100mm
Double-layer thermal insulation sealing technology, low heat loss, energy saving, strong safety performance, low body shell temperature, and little impact on the ambient temperature in the use site
Precision circulation air duct system, according to the characteristics of customer materials, design the internal circulation air duct system to make customer materials evenly heated during baking and aging
Equipment electrical accessories are all Schneider, OMRON, Carlo gavazzi, Siemens, Omega, Rainbow and other imported brands ensure the stability and safety of equipment use;
Safety device
Test chamber	Adjustable over-temperature protector, automatic pressure balance protection of the box
Heating system	Heating tube dry burning protection, heating tube short circuit protection, heating tube overload protection, heating tube and fan interlocking fan non-operation and non-heating protection
Circulating fan	Fan overload protection, short circuit protection
Power control system	Power short circuit protection, power overload protection, power supply phase loss protection, control line overload protection

Touch screen or PLC control system
Multi-point temperature real-time recording system
Box explosion-proof pressure relief device

Test Standards:

1. GB/T 5170.2-2017 Temperature test method

2. GB/T 2423.1-2008 Environmental test for electrical and electronic products Test A: Low temperature test

3. GB/T 2423.2-2008 Environmental test for electrical and electronic products Test B: High temperature test

4. GB/T 2423.3-2008 Test Ca: Steady damp heat test method

5. GB/T 2423.4-2008/IEC6008-2-30:2005 Test Db: Alternating damp heat method
