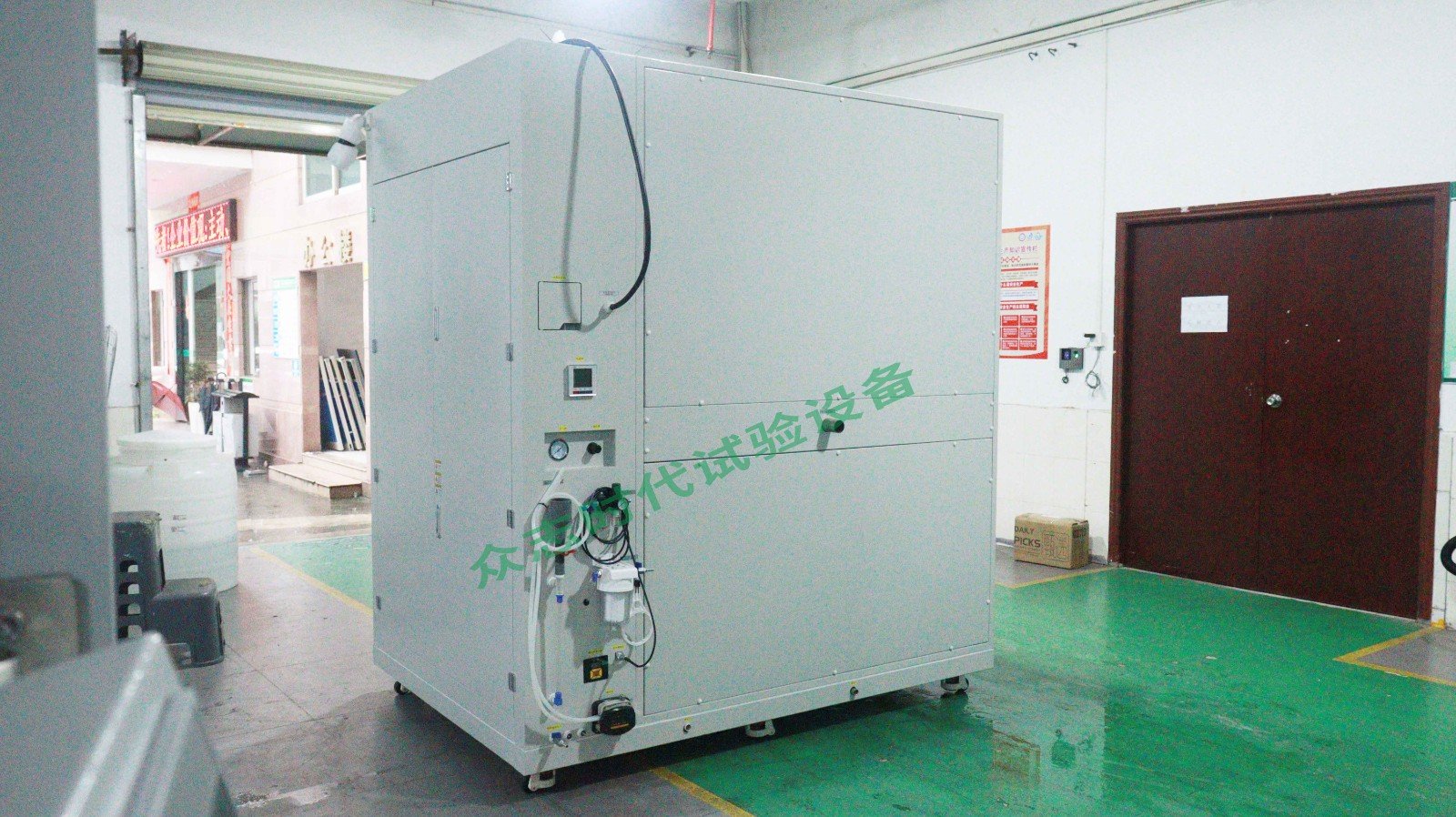

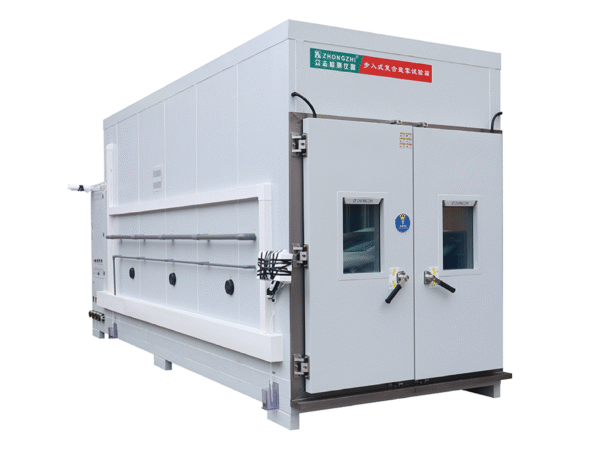

Walk in Composite Salt Dry Wet Testing Machine 3m ³

Use:

1. The corrosion of protected and unprotected metal materials is affected by many environmental factors, which mainly depends on the type of metal material and the type of environment. It is impossible to design a laboratory accelerated corrosion test room that includes all environmental factors that affect corrosion resistance. Therefore, the laboratory test is designed to simulate the factors that play a major role in the corrosion of metal materials. This equipment is designed to simulate and increase the impact of the environment on metal materials exposed to outdoor atmospheres with salt pollution and accelerated corrosion. The equipment includes test methods for cyclically exposing specimens to salt spray, dry, and humid heat environments. This equipment test is a comparative test, and the test results cannot predict the long-term results of the corrosion resistance of the same metal material used under these environmental conditions. However, this method can still provide valuable information on the relevant performance of materials exposed to salt pollution environments similar to the test conditions. Compared with traditional accelerated corrosion tests such as neutral salt spray test (NSS), acetic acid salt spray test (AASS), and copper accelerated acetic acid salt spray test (CASS), the biggest advantage of this equipment test is that it can better reproduce the corrosion occurring in outdoor salt pollution environments.

2. The accelerated corrosion test of this equipment is applicable to: metals and their alloys, metal coatings (anodic and cathodic), conversion coatings, anodized coatings, organic coatings on metal materials, etc.



Main Functions of the Device:

The composite salt spray composite test room has the entire inner box space being corrosion-resistant. The inner box is made of corrosion-resistant materials and has excellent thermal insulation performance. In addition, the equipment also has the following functions:

The composite salt spray composite test room has the entire inner box space being corrosion-resistant. The inner box is made of corrosion-resistant materials and has excellent thermal insulation performance. In addition, the equipment also has the following functions:

(1) It has an emergency braking function. A brake switch is installed on the equipment. When an abnormal situation occurs, the equipment can be powered off by controlling the switch.

(2) The equipment is equipped with corresponding system software. The software can run stably on the provided operating system. The software interface is in Chinese or English and has no service life limit. The software includes temperature change test, humidity, precision calibration part, and equipment self-test module part.

(3) The system software can record, automatically save, and optimize data in real time. The temperature-time, humidity-time and other curves can be drawn through software settings.

(4) The system software is equipped with a safety protection parameter interface, and after the setting is completed, it will be given priority during the test process to ensure the safety of the test.

(5) The system software can achieve the function of test data security protection. The software has an administrator function and can limit the operating permissions of general operators.

(6) The system software has a post-data processing function and can support the import of multiple data files, support data screening, and support any X-axis and Y-axis selection.

(7) The equipment has multiple functions such as high temperature, wet heat, drying, and salt spray, which can realize automatic cycle control or single function control, simple operation, and data management.



Product Details：



Major Specifications:

Product name	Compound salt dry and wet test machine
Product model	CZ-3000D
Specimen restrictions	This test equipment prohibits: Testing or storing samples of flammable, explosive, and volatile substances Testing or storing samples of corrosive substances Testing or storing biological samples Testing or storing samples of strong electromagnetic emission sources Testing and storing samples of radioactive substances Testing and storing samples of highly toxic substances Testing and storing samples that may produce highly toxic substances during testing or storage
Nominal content volume	3m³ excluding the top sloping roof volume
Inner box size (mm)	1500×1500×1300 WXHXD (excluding sloping roof height) Note: The top sloping roof angle is 120°, and the sloping roof height is 375mm
Outer box size (mm)	About 2650×2280×1500 W×HXD
Salt water tank size (mm)	About Φ600mm×H950mm
Temperature range	10℃~+70℃
Saturated barrel temperature range	RT～+70℃
Spray mode	Continuous spray, intermittent spray, program spray three modes can be adjusted
Humidity range	20%R.H～98%R.H(as shown)
GJB150 alternating salt spray test conditions	a. Adjust the test chamber temperature to 35℃ and keep it at this temperature for 2h; b. At 35℃ ambient temperature, 47℃ saturated barrel temperature, 5% salt water concentration spray test for 24h, the spray volume is maintained at 1～3ml/(h · 80cm²); c. Dry for 24 hours under standard ambient atmospheric conditions of 15～35℃ and relative humidity less than 50%RH; d. Repeat test conditions b and c at least once; e. Perform physical and electrical performance tests and record test results.
Commonly used alternating salt spray test conditions	At 35℃ ambient temperature, 47℃ saturated barrel temperature, 5% salt water concentration spray test time 1min~999h can be set arbitrarily, then in the wet heat test temperature 40℃±2℃, relative humidity 93%RH ±2%RH, test time 1min~999h can be set arbitrarily; cycle 1~999 times can be set arbitrarily. Then stand for 1min~999h under standard environmental conditions of temperature 23℃±2℃ and relative humidity 50%RH±5%RH, can be set arbitrarily.
Salt spray and drying alternating test	At 35℃ ambient temperature, 47℃ saturated barrel temperature, 5% salt water concentration, spray test time 1min~999h can be set arbitrarily, then switch to 15~30℃ temperature, relative humidity less than 50%RH, drying test time 1min~999h can be set arbitrarily;
Other test conditions	Can conduct NSS salt spray test, AASS acetic acid salt spray test, CASS copper accelerated acetic acid salt spray test, wet heat test, drying test, standard macroclimate environment test test conditions or other test conditions Other combined test conditions
Control accuracy	Temperature resolution: 0.1℃ Humidity resolution: 0.1%R.H Temperature deviation: ≤±2.0℃ Humidity deviation: ≤+2-3%R.H when ≥75%RH; Humidity deviation: ≤±5%R.H when <75%RH; Temperature uniformity: ≤2℃ Humidity uniformity: ≤+2-3%R.H when ≥75%RH; Humidity deviation: ≤±5%R.H when <75%RH Temperature fluctuation: ≤±0.5 Humidity fluctuation: ±2%R.H Note: Temperature uniformity and deviation are values ​​measured under the conditions of ambient temperature of +25℃, relative humidity ≤85%R.H, and no sample.
Heating rate	Normal temperature → 70℃≥2℃/min under average no-load conditions
Cooling rate	70℃→ 10℃≥1℃/min under average no-load conditions
Salt spray precipitation	1～3ml/(h ·80cm²)(collect for at least 16 hours and take the average value)
Spray pressure	70～170Kpa
PH value	6.5～7.2
Meet the test method	D0160 E/F/G    salt spray test requirements GJB 150.11A-2009    Military equipment laboratory environmental test method salt spray test; GB/T 2424.17-2008/IEC60068-2-11:1981    Salt spray test method; GB/T 2423.18-2012/IEC 60068-2-52:1996    Sodium chloride alternating salt spray test method; GB/T 2423.3-2006/IEC6008-2-78-2001    Test cab: Steady heat test method; GB/T 10125-2012/IS09227-2006    Artificial atmosphere corrosion test salt spray test; GB/T 31467.3-2015    Lithium-ion power battery pack and system for electric vehicles Part 3: Safety requirements and test methods: Salt spray test;
Equipment meets the test method	GB/T5170.5-2008    Heat test equipment inspection method GB/T 10587-2006   Salt spray test chamber technical conditions GB/T 10586-2006   Heat test chamber technical conditions GB/T 5170.8-2008   Inspection Method for Environmental Test Equipment of Electrical and Electronic Products Salt Spray Test Equipment
Noise	Less than 75db (measured 1m from the front of the box and 1.2m from the ground)
Power Supply	AC (380±10)V (50±0.5)Hz three-phase four-wire + protective grounding
Power Supply Mode	Protective ground wire grounding resistance is less than 4Ω; TN-S power supply or TT power supply Requires the user to configure an air or power switch of corresponding capacity for the equipment at the installation site, and this switch must be independently used for this equipment
Power Supply Capacity	Installed Power: 36.5KW, Maximum Operating Power 26.5KW Maximum Current: 32A (It is recommended that the switch capacity is not less than 50A, and the switch is less than 5 meters away from the equipment power supply)
