Function:

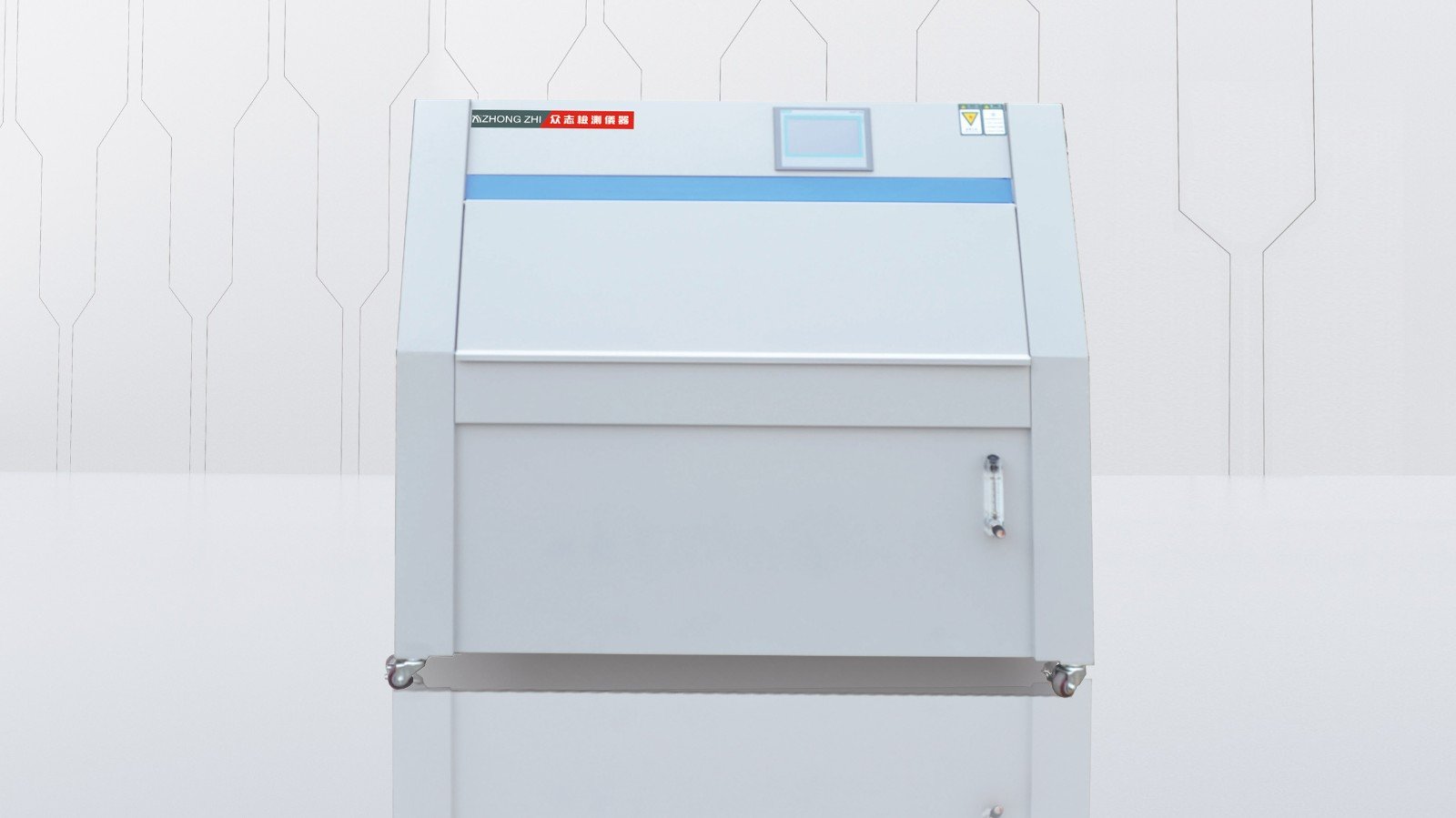

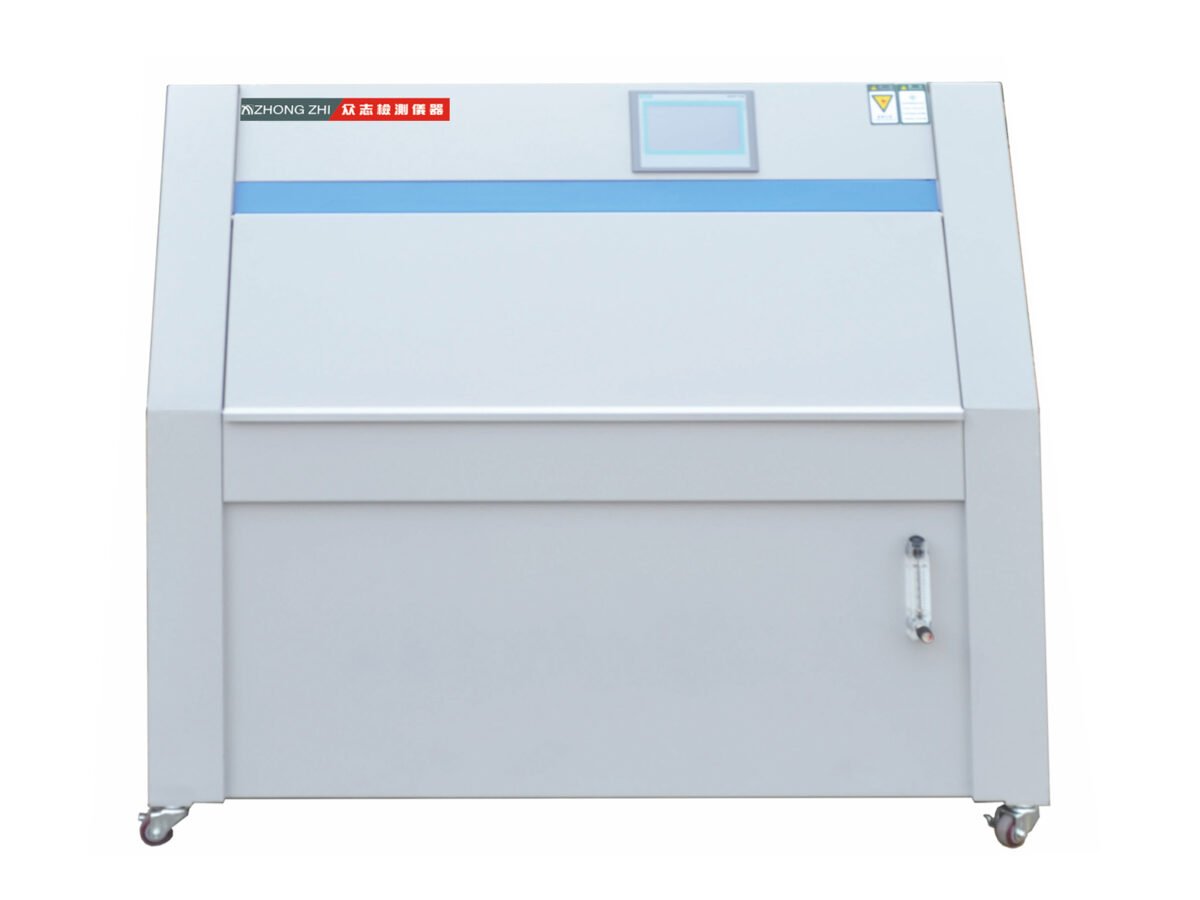

This product uses fluorescent ultraviolet lamps that can best simulate the UV spectrum of sunlight, and combines temperature control, humidity supply and other devices to simulate factors such as sunlight (UV segment) high temperature, high humidity, condensation, dark cycle, etc. that cause discoloration, brightness, strength decline: cracking, peeling, powdering, oxidation and other damages to materials. At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or invalidated, so it is widely used to evaluate the weather resistance of materials.
Major Specifications:
| Model | CZ-UV-1 | CZ-UV-430 |
| Inner size
(WxHxD)(mm) |
Sample size 75*150mm,total 48 pieces | 1100x600x650 |
| Outer size(WxHxD)(mm) | 1300x1480x550 | 1600x1512x800 |
| Illumination temperature range | 50-70℃ | |
| Condensing temperature range | RT-60℃ | |
| Light source | There are two types of lamp tubes: UV-A/UV-B. The wavelength range of UV-A is 300 ~ 400nm, with a peak value of 340nm; the wavelength range of UV-B is 275 ~ 375nm, with a peak value of 313nm; the service life of the lamp tube is 1,600h. | |
| Irradiation intensity | 0.3W/m2~1.1w/m2(313nm);0.3W/m2~1.2w/m2(340nm); | |
| Spray water pressure | 30~200Kpa | |
| Nozzle specification | The aperture is 0.8mm, the spray expansion angle is 60°, and the spray volume can be adjusted. | |
| Control accuracy | emperature resolution: 0.01°C; temperature deviation of test area: ± 3°C; black panel temperature deviation: ± 3°C; irradiation intensity deviation: ± 10% W/m2 | |
| Water supply mode | Automatic/manual dual water supply mode. The equipment is equipped with a small pure water filter for water supply. | |
| Power | AC220V single-phase two-wire + protective grounding; allowable voltage fluctuation range: ±10%V, power: 5.6KW | |
Product Details:
Test Standards:
1. GBT16422.1-2006/ISO4892-1:1999 General principles for laboratory light source exposure test methods for plastics
2. GB/T16422.3-2014/1SO4892-3:2006 Laboratory light source exposure test methods for plastics Part 2 Gas arc lamp
3. GB/T14522-2008 Artificial weathering test methods for plastics, coatings and rubber materials for mechanical industrial products Fluorescent ultraviolet lamp
4. GB/T23987-2009/ISO11507:2007 Artificial weathering exposure of paint and varnish coatings (UV)
5. GB/T9535-2006/1EC61215:2005 Terrestrial crystalline silicon photovoltaic modules-Design identification and finalization (10.10 UV pretreatment test part)
6. ASTMG154-2006
7. ASTMG153
