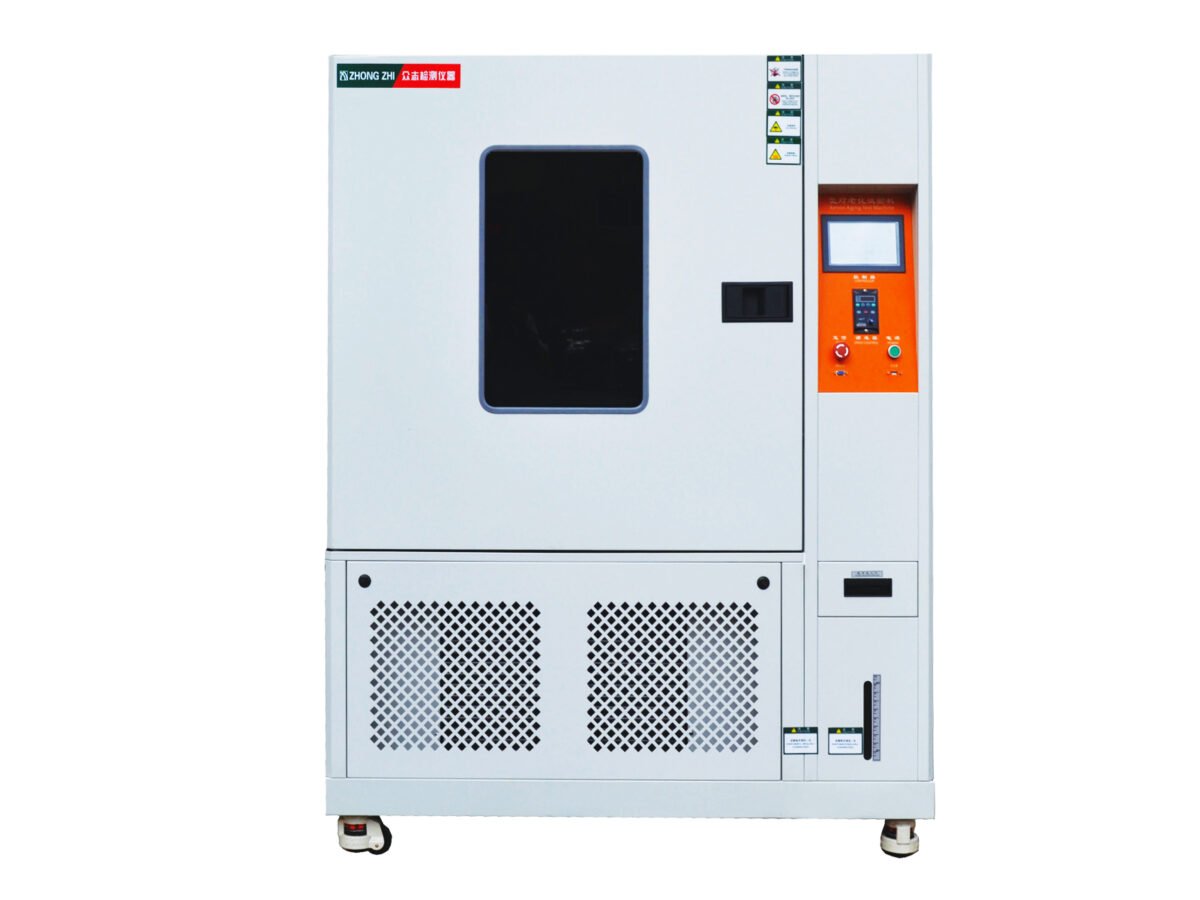

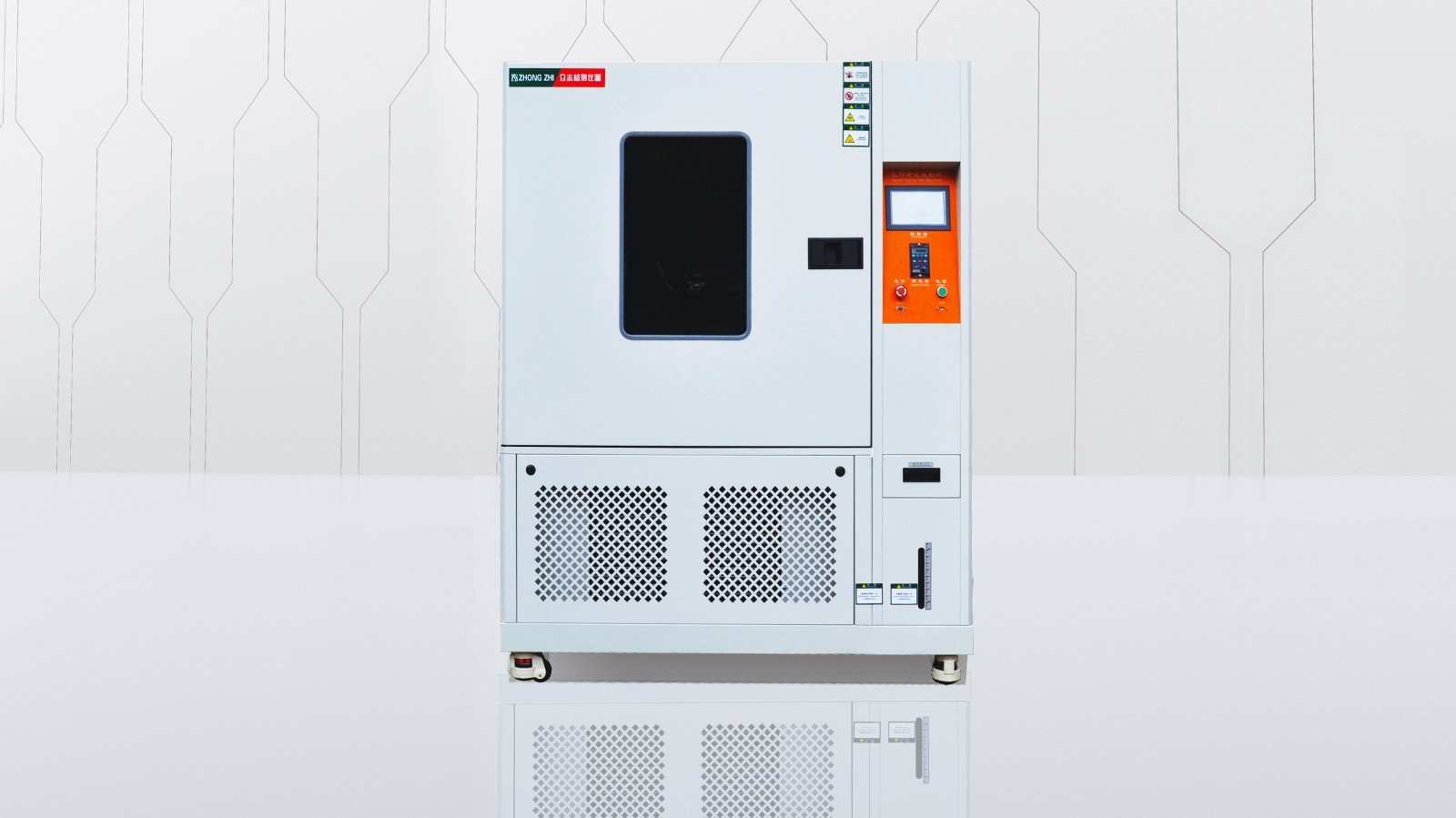

Function:
It is mainly used to simulate the accelerated aging test of materials under comprehensive environmental conditions such as sunlight outdoors or through window glass, high temperature, humidity, and rain, and to test the degree of influence on the physical, chemical and optical properties of materials.
Major Specifications:
| Model | CZ-1000XD | CZ-UV-1000XD(340nm) | CZ-UV-1000XD(340/420nm) | |
| Inner size (WxHxD)(cm) | 100x100x100 | 100x100x100 | 100x100x100 | |
| Outer size (WxHxD)(cm) | 150x195x160 | 150x195x160 | 150x195x160 | |
| Test lab temperature | RT+10°C ~100°C; | |||
| Blackboard temperature | 40°C ~110℃ | |||
| Humidity range | Irradiation period: 30~60%R.H.;Dark period:20~98%R.H.; | |||
| Irradiation intensity | 500~1200w/m2(300~2450nm) | 0.3~1.2w/m2(340nm) | 0.3~1.2w/m2(340nm);
0.5~1.5w/m2(420nm); |
|
| Lamp cooling method | Air-cooling | Water-cooling | Water-cooling | |
| Outer optical filter | Borosilicate glass filter | Borosilicate glass filter | Silica glass filter/soda glass filter | |
| Inner optical filter | Borosilicate glass filter | |||
| Test working platform | Dynamic rotary test stand made of SUS304# stainless steel, with a rotating speed adjustable from 1 ~ 7r/min. | |||
| Test sample size | 50mm×150mm (W×H), 2 specimens per specimen holder frame, 30 specimen holder frames in total (standard configuration) | |||
| Spray water pressure | 30~200Kpa | |||
| Nozzle size | The aperture is 0.8mm, the spray expansion angle is 60°, and the spray volume can be adjusted. | |||
| Control accuracy | Temperature resolution: 0.01 °C; humidity resolution: 0.1%R.H;
temperature deviation: ±3°C; humidity deviation: ±3%R.H; black panel temperature deviation: ±3°C; |
|||
| Chamber material | Inner SUS#304 stainless steel ,outer cold rolled steel plate baking paint
|
|||
| Water supply mode | Automatic/manual dual water supply mode. The equipment is equipped with a small pure water filter for water supply. | Automatic/manual dual water supply mode, with built-in ultrapure water machine and water chiller for water supply | ||
| Power supply | AC380V three-phase four-wire + protective grounding; allowable voltage fluctuation range: ±10%V, power: 15.6KW | AC380V three-phase four-wire + protective grounding; allowable voltage fluctuation range: ±10%V, power: 20.6KW | ||
Product Details:
Test Standards:
1. GBT 2423.24-2013/IEC 60068-2-5: 2010 Environmental Testing – Part 2 Test Methods – Test Sa: Simulated Solar Radiation at Ground Level and Guideline for Solar Radiation Testing (IEC 60068-2-5: 2010, Environmental Testing – Part 2-5 Tests – Test Sa: Simulated Solar Radiation at Ground Level and Guideline for Solar Radiation Testing, IDT)
2. GBT16422.2-2014/ISO 4892-2: 2006 Plastic – Methods of Exposure to Laboratory Light Sources – Part 2: Xenon-arc Sources
3. GBT16422.1-2006/ISO4892-1:1999 Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General Guidance
4. GB-T1865-2009 /ISO11341:2004 Paints and Varnishes – Artificial Weathering and Exposure to Artificial Radiation – Exposure to Filtered Xenon-arc Irradiation
5. GB/T3511-2008 / ISO 4665:1998 Rubber, Vulcanized or Thermoplastic – Resistance to Weathering
6. GBT 2423.4-2008/IEC 6008-2-30:2005 Damp Heat, Cyclic
7. GB/T 10586-2006 Specifications for Damp Heat Testing Chamber
8. GBT5170.9-2008 Inspection Methods for Environmental Testing Equipment for Electric and Electronic Products – Solar Radiation Testing Equipment
9. GJB 150.7A-2009 Laboratory Environmental Test Methods for Military Material – Part 7: Solar Radiation Test
