Function:
This equipment is mainly used to detect discontinuities such as pores or other defects in metals and their alloys, metal coatings, organic coatings, anodized films and conversion films. The chamber heating of this salt spray machine adopts thermal radiation heating to maintain the required temperature of the test space, thereby ensuring the accuracy of the test.

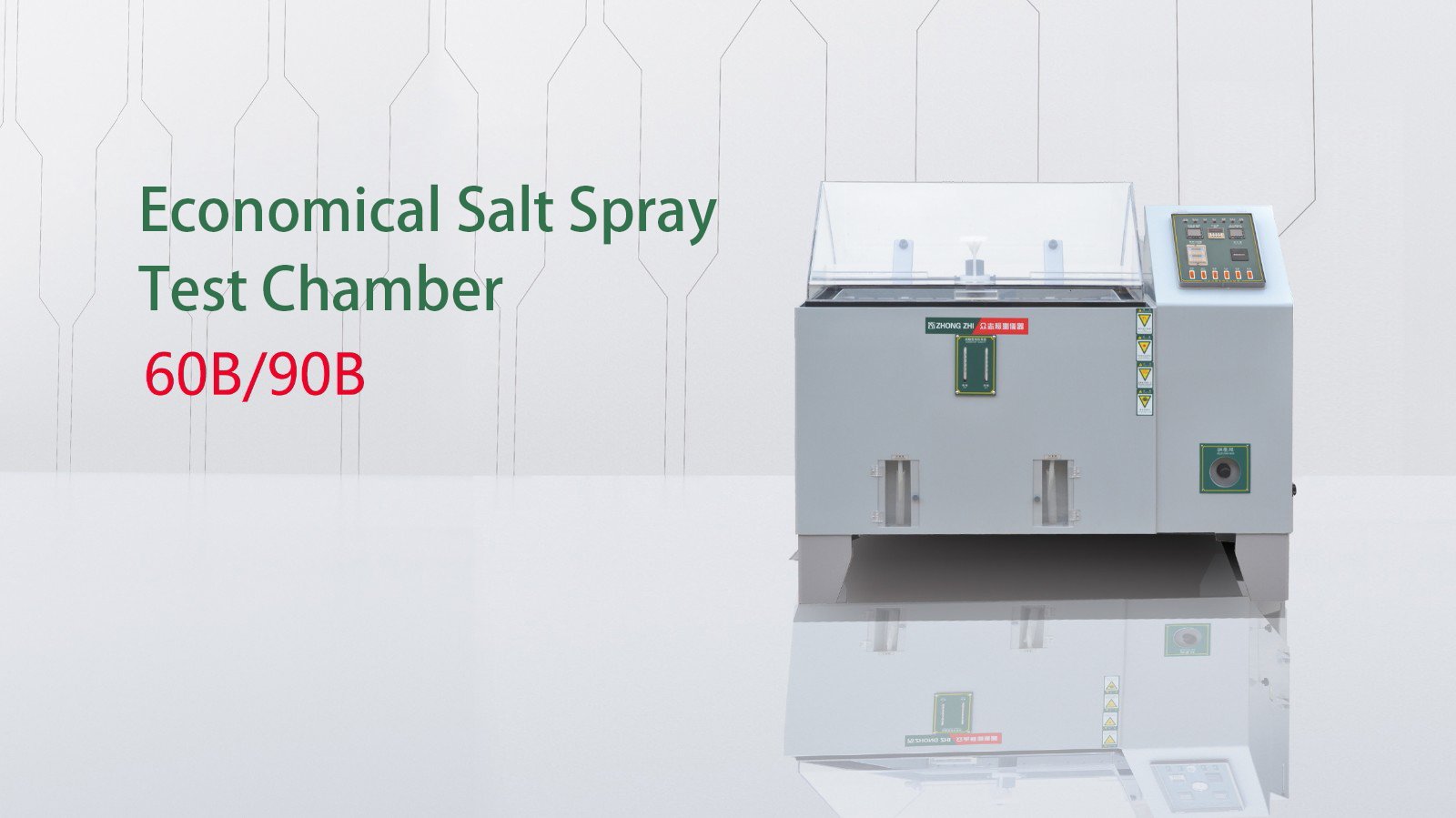

Type B salt spray chamber is our most economical model, which can perform continuous salt spray test or intermittent spray test.
Major Specifications:
| Model | CZ-60B | CZ-90B | CZ-120B | CZ-160B | CZ-200B |
| Inner size (WxHxD)(cm) | 60x40x45 | 90x50x60 | 120x50x80 | 160x50x100 | 200x60x120 |
| Outer size (WxHxD)(cm) | 116x110x60 | 145x120x88 | 208x133x125 | 247x132x145 | 287x141x165 |
| Test lab temperature |
Salt spray test method (NSS ACSS) 35°C ± 1°C; Corrosion resistance test method (CASS) 50℃ ± 1℃ |
||||
| Pressure barrel temperature |
Salt spray test method (NSS ACSS) 47°C ± 1°C; Corrosion resistance test method (CASS) 63℃ ± 1℃ |
||||
| Test lab capacity | 108L | 270L | 480L | 800L | 1440L |
| Salt tank capacity | 15L | 25L | 40L | 40L | 40L |
| Salt concentration | Add 0.26g of copper chloride (CuCL2 2H2O) per liter to 5% sodium chloride solution or 5% sodium chloride solution | ||||
| Salt spray pressure | 70-170Kpa | ||||
| Spray volume | 1~2ml/ (h•80cm2) (collect for at least 16 hours and take the average value) | ||||
| Test lab relative humidity | ＞85% | ||||
| PH value | 6.5~7.2 3.0~3.2 | ||||
| Spray method | Programmable spray (including continuous spray and intermittent spray) | ||||
| Power | AC220V 1 ∅10A | AC220V 1 ∅20A | AC220V 1 ∅25A | ||
Product Details
Test Standards:
1)GB/T2423.17-2008 / IEC60068-2-11-1981 Salt spray test method•ASTM.B117-2011 Salt spray test
2)ASTM-B368-09 Standard test method for copper acetate, salt spray test (CASS test)
3)JIS H8502 Salt spray test method
4)GB/T10125-2012 / ISO 9227-2006 Salt spray test method
5)GB/T5170.8-2008 Inspection method for environmental test equipment for electrical and electronic products – Salt spray test equipment
6)GB/T5170.11-2008 Inspection method for corrosive gas test equipment
7)GB/T10587-2006 Technical conditions for salt spray test chambers
8)GB/T20121-2006 / ISO11474-1998 Corrosion test of metals and alloys in artificial atmospheres Outdoor accelerated test under intermittent
salt spray – scab test
