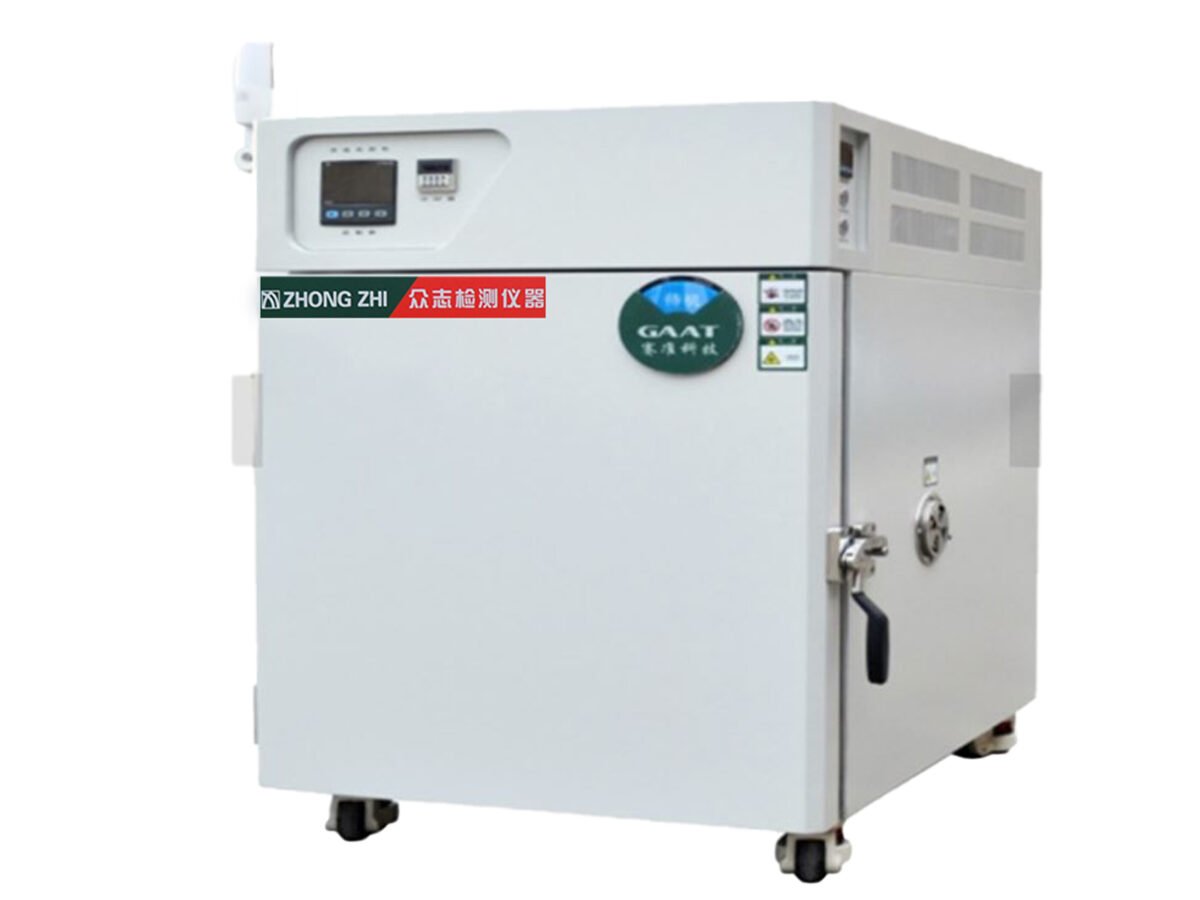

High Temperature Aging Test Chamber

Use:

Single-door vertical precision high temperature test chamber (environmental aging test chamber) is suitable for baking, drying, curing, heat treatment and temperature aging of LED, LCD, PCB, electronics, electrical appliances, communications, new energy products and materials within temperature.

Vertical High Temperature Aging Test Chamber Features:

LCD display controller imported from South Korea, can display the set temperature, current temperature, P.I.D automatic calculation control, including four groups of temperature alarm point output, internally set four sections of nonlinear temperature deviation calibration, DC 0～24V output control
Outer wall material: cold rolled steel plate with paint treatment, plate thickness 1.2mm (paint color: RAL7035) Inner wall material: stainless steel, argon arc welding, full welding to prevent dust from the machine itself, plate thickness 1.2mm Insulation material: The insulation medium is high-density aluminum silicate, insulation material thickness: 100mm
Double-layer thermal insulation sealing technology, low heat loss, energy saving, strong safety performance, low body shell temperature, and little impact on the ambient temperature in the use site
Precision circulation air duct system, according to the characteristics of customer materials, design the internal circulation air duct system to make the customer materials evenly heated during the baking and aging process
Equipment electrical accessories are all made of Schneider, OMRON, Carlo gavazzi, Siemens, Omega, Rainbow and other imported brands ensure the stability and safety of equipment use
Safety device
Test chamber	Adjustable over-temperature protector, automatic pressure balance protection of the box
Heating system	Heating tube dry burning protection, heating tube short circuit protection, heating tube overload protection, heating tube and fan interlocking fan non-operation and non-heating protection
Circulating fan	Fan overload protection, short circuit protection
Power control system	Power short circuit protection, power overload protection, power supply phase loss protection, control line overload protection

Touch screen or PLC control system
Multi-point temperature real-time recording system
Box explosion-proof pressure relief device
Remote operation real-time monitoring system

Major Specifications:

Model	SZ-A-72A	SZ-A-150A	SZ-A-270A	SZ-A-480A	SZ-A-1000A
Volume (L)	72	150	270	480	1000
Inner box size (mm)DHD	450×400×400	500×600×500	600×900×500	800×1000×600	1000×1000×1000
Outer box size WHD(mm)	750×1150×650	800×1250×750	900×1550×750	1100×1650×850	1300×1650×1250
Temperature range	℃A：200℃ B：300℃ C：400℃ D：500
Heating time	RT~100℃ about 10 minutes
Temperature resolution	℃0.1
Temperature fluctuation	℃±0.5
Temperature distribution error	V±2
Temperature measuring body	PT100 platinum resistance
Inner box material	Stainless steel material
Outer box material	A3 steel plate fine powder anti-static paint or stainless steel
Insulation material	High-density aluminum silicate
Glass observation window	Double-layer explosion-proof window (no observation window above 200℃)
Dynamic test hole	∮50mm test hole on the left side of the box
Air circulation system	Forced horizontal hot air circulation
Heating system	Built-in nickel-chromium alloy heater, pollution-free and long service life, independent system, does not affect the control circuit
Safety protection	Over-temperature protector, automatic box pressure balance protection, heating tube short circuit protection, heating tube overload protection, heating tube and fan interlocking fan does not run and does not heat protection Fan overload protection, short circuit protection, power supply short circuit protection, power supply overload protection, power supply lack of phase protection, control line overload protection
Sample rack	Adjustable sample rack, minimum adjustment spacing 45mm; the tray is made of stainless steel steel bars bent and welded into a tray rack, and the standard configuration is 2 tray racks
Power	3.5KW	4.5KW	5.5KW	7.5KW	12KW
Power Supply	220V 50HZ	220V 50HZ	220V 50HZ	380V 50HZ	380V 50HZ
Noise	70db(A) (1m from the cabinet; measured 1.2m from the ground)≤

Test Standards:

1. GBT 11158-2008 Technical requirements for high temperature test chambers

2. GBT 2423.2-2008 Environmental testing for electrical and electronic products Part 2: Test methods Test B: High temperature

3. GB/T 30435-2013 Electric drying oven and electric blast drying oven
