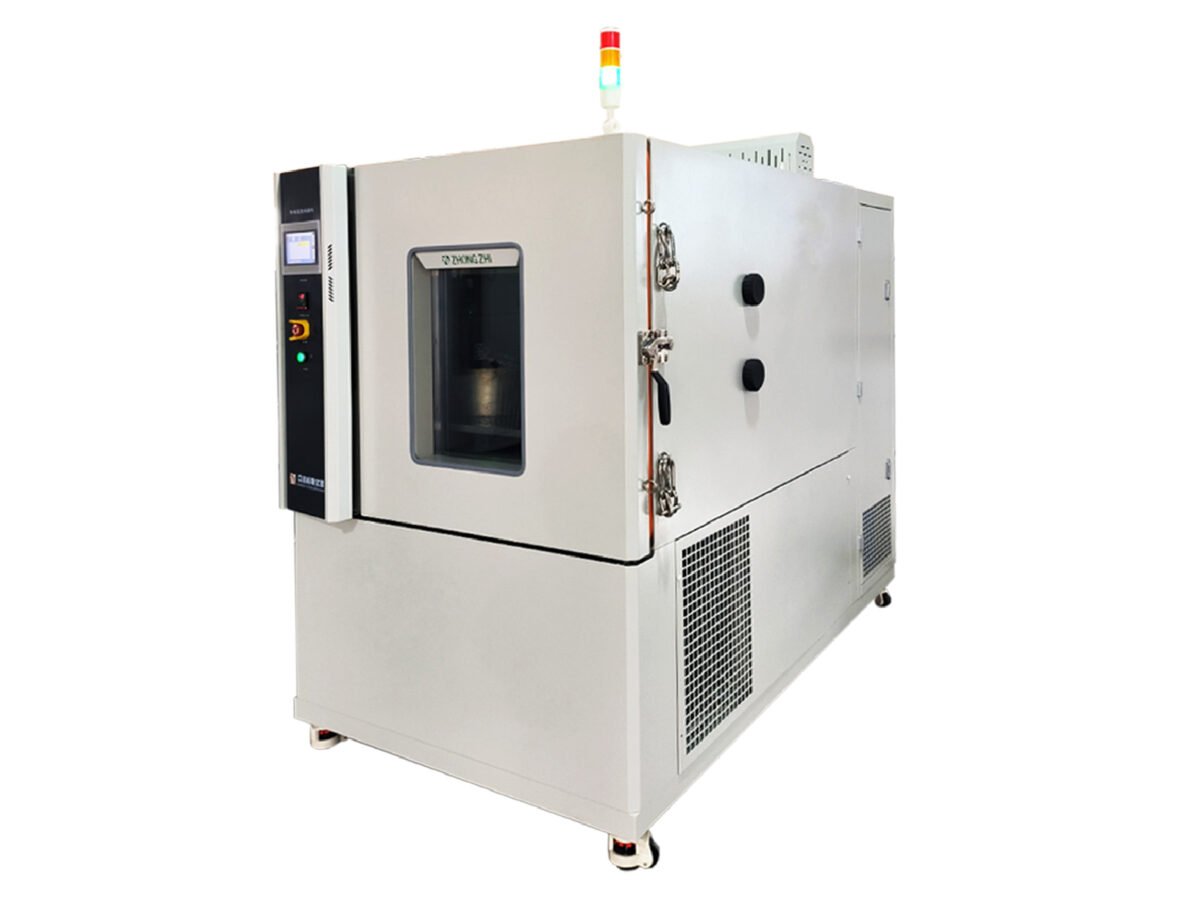

High and Low Temperature Test Chamber

Use:

High and low temperature test chamber is also called high and low temperature cycle test chamber, temperature test chamber, etc. This equipment simulates the temperature conditions in the climate environment, and conducts accelerated aging tests on the test products through constant high temperature, constant low temperature, high and low temperature cycle, etc. Under the specified temperature conditions and specified time requirements, the product is tested for function to evaluate its reliability. It is widely used in product testing in aerospace, university research, third-party quality inspection agencies, semiconductor chips, electronic components, automobiles, optoelectronics, new energy, hardware materials and other fields.

Features:

Environmentally friendly refrigerant R404A&R23 is used, which is healthy and environmentally friendly; the original imported brand compressor and electrical accessories are of reliable quality to ensure the stable operation of the machine; the refrigeration system design adopts fully automatic protection measures, which is energy-saving and has a longer service life; the box body is composed of an outer layer of plastic-sprayed anti-corrosion electrolytic plate, and the inner box is made of SUS304 stainless steel plate, which is durable; the door frame is equipped with two rubber sealing strips and anti-condensation electric heating devices to prevent external condensation and frost; the observation window is equipped with an electronic defogger film for heating and sweat prevention, and is equipped with a lighting lamp to facilitate the inspection of the test progress; independent cold end and hot end PID adjustment, both heat and cooling capacity can be continuously adjusted; it avoids energy waste caused by the hedging of cooling capacity and heating capacity, reduces energy consumption and saves electricity bills; the test data curve screen can display the execution program number, segment, remaining time and number of cycles, operation time, etc. 269 ​​groups with 13450 segments, large program capacity, 999999h59m ultra-long fixed value operation; RS-485 and LAN, USB2.0 interface multiple communication functions; can be connected to a computer to display curves and data acquisition: can be used as a monitoring and control system: can be used for multiple machines synchronous control.

Major Specifications:

Product Details：

Temperature and Humidity Control Range:

Test Standards:

GB/T 2423.1-2008/IEC6008-2-1-2007   Low temperature test method
GB/T 2423.2-2008   High temperature test method
GJB 150.3A-2009   High temperature test method
GJB 150.4A-2009   Low temperature test method
GB/T 2423.22-2008   Temperature change rate test method
GB/T 2424.5-2006   Temperature test chamber performance confirmation
GB/T 10589-2008   Low temperature test chamber technical conditions
GB/T 2423.3-2008(IEC68-2-3)   Steady damp heat test method
GJB 150.9A-2009   Damp heat test method
GB/T 2423.4-2008/IEC6008-2-30:2005   Alternating damp heat method
GB/T 5170.18-2005   Temperature/humidity combination cycle test equipment calibration method
GB/T 10586-2006   Technical conditions for damp heat test chambers
GB/T 2424.6-2006   Performance confirmation of temperature/humidity test chambers
GB/T 2424.7-2006   Measurement of (loaded) temperature test chambers
